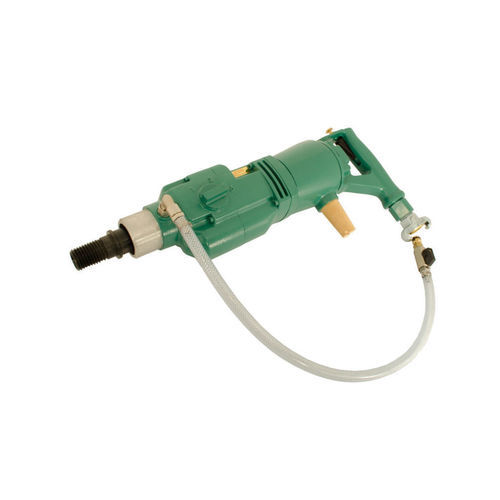

Pneumatic core drilling machine 2 1333 0010

for concretehand-heldwith cooling system

Product overview
The pneumatic core drill unit for hand-operated and drill-rig mounted core drilling in concrete, stone and masonry. Free-hand drilling up to 82 mm and drill-rig drilling up to 160 mm. Certified ATEX II2GExhIIBT6Gb for use in hazardous areas. Typical sectors: energy and pipeline construction, plant and mechanical engineering.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Free-hand drilling capacity: up to 82 mm
• Drilling with drill rig: up to 160 mm
• ATEX: II2GExhIIBT6Gb
• Gear stages: 3 — speeds 400 / 900 / 1,600 rpm
• Torque stages: 49 / 31 / 16 Nm
• Power: 1.60 kW
• Weight: 8.2 kg

Technical data (table)

• ORDER NO.: 2 1333 0010
• ATEX specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill bit adapter: 1 1/4" UNC male / R1/2" female
• Drill bit max. dia.: 160.00 mm
• To use for: free-hand drilling / with drill rig
• Gear stages: 3
• Speed stages: 400 / 900 / 1,600 rpm
• Torque stages: 49 / 31 / 16 Nm
• Power: 1.60 kW
• Air consumption: 2.20 m³/min
• Tool adapter center dia.: 60.00 mm
• Total length: 540.00 mm
• Connection: R3/4" male
• Cooling connection: Gardena system
• Noise level LpA: 83.0 dB(A)
• Noise level LWA: 94.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 8.2 kg

Applications

• Core drilling in reinforced and unreinforced concrete for pipe penetrations and service entries
• Drilling for anchors, installations and HVAC openings
• On-site energy and pipeline works, plant construction and maintenance

Accessories (selection)
Drill bits

• 9 2527 0010 | 16.00 mm | Optimum 4,500 rpm | Peripheral speed 3.53 m/s | Connection R1/2" | Usable length 320 mm
• 9 2527 0020 | 20.00 mm | Optimum 3,200 rpm | Peripheral speed 3.35 m/s | Connection R1/2" | Usable length 400 mm
• 9 2527 0040 | 30.00 mm | Optimum 2,200 rpm | Peripheral speed 3.45 m/s | Connection R1/2" | Usable length 400 mm
• 9 2527 0080 | 50.00 mm | Optimum 1,300 rpm | Peripheral speed 3.40 m/s | Connection R1/2" | Usable length 400 mm
• 9 2526 0140 | 82.00 mm | Optimum 800 rpm | Peripheral speed 3.35 m/s | Connection 1 1/4"UNC | Usable length 450 mm
• 9 2526 0280 | 152.00 mm | Optimum 390 rpm | Peripheral speed 3.06 m/s | Connection 1 1/4"UNC | Usable length 450 mm

Drill rig

• 2 1317 9500 | Drill rig for angular holes under 45°–90° up to dia. 160 mm

Clamp for pipes

• 2 1313 8500 | Clamp for pipes, to use with drill rig type 9 4101 0080 | For pipe dia. 150 up to 600 mm

Drill chucks (selection)

• 9 2902 0280 | Adapter from 1 1/4" UNC female to M18x1.5 male
• 9 2911 0040 | Drill chuck for drill bit dia. 3 up to 16 mm

Extensions for drill bits (selection)

• 2 1315 7020 | Extension | Machine side 1 1/4" UNC female | Drill side R1/2" female | Length 300 mm
• 2 1322 7020 | Extension | 1 1/4" UNC female to 1 1/4" UNC male | Length 500 mm

Miscellaneous accessories (selection)

• 5 8002 9100 | Water tank 10 l
• 2 1315 9500 | Tool set
• 9 9910 0080 | Carrying case

Technical specifications

• Order number: 2 1333 0010
• ATEX specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Max. drill bit diameter: 160 mm (with drill rig)
• Free-hand drill capacity: up to 82 mm
• Gear stages: 3
• Speed stages: 400 / 900 / 1,600 rpm
• Torque stages: 49 / 31 / 16 Nm
• Power: 1.60 kW
• Air consumption: 2.20 m³/min
• Tool adapter center dia.: 60 mm
• Total length: 540 mm
• Connection: R3/4" male
• Cooling connection: Gardena system
• Noise level LpA: 83.0 dB(A)
• Noise level LWA: 94.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 8.2 kg
