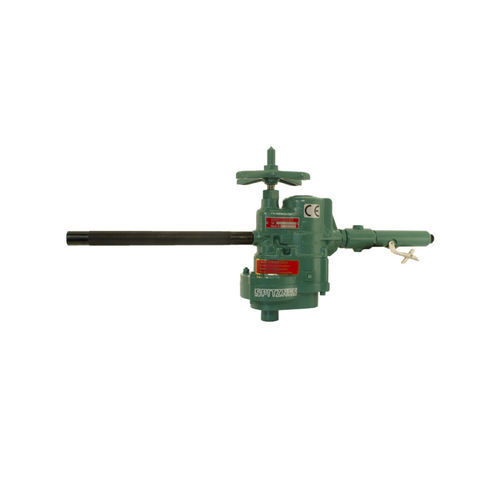

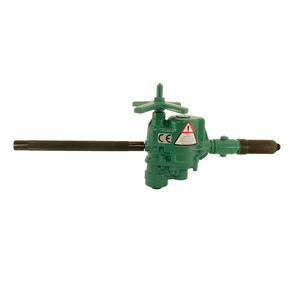

Pneumatic drill 2 1402 0030

mechanical self-feed

Product description
Pneumatic drill equipped with a feed spindle for controlled axial feed. Designed for drilling and reaming in steel with an MT3 spindle interface and clockwise rotation. Suitable for production, plant and pipeline construction applications.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck: MT3
• Valve type: Safety twist throttle
• Direction of rotation: clockwise

Technical data
ORDER NO.: 2 1402 0030
Energy source: Pneumatic
Operating pressure: 6 bar
Drill chuck: MT3
Valve type: Safety twist throttle
Direction of rotation: clockwise
Drilling dia. capacity in steel: 25.00 mm
Reaming dia. capacity in steel: 22.00 mm
Torque: 146 Nm
Speed (free): 40 rpm
Power: 0.68 kW
Air consumption: 0.68 m³/min
Height with feed spindle: 285.00 mm
Connection: R3/8" male
Noise level LpA: 93.8 dB(A)
Noise level LWA: 105.0 dB(A)
Vibration level: <2.5 m/s²
Weight: 8.0 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories
Service units

• 9 2406 0260 — Portable service unit with pressure regulator 3/4"
• 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2"
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"

Hoses and more

• 9 3610 0410 — Pneumatic hose ID 13.00 mm, length 2.5 m, screw-on claw coupling
• 9 3610 0420 — Pneumatic hose ID 16.00 mm, length 2.5 m, screw-on claw coupling
• 9 3610 0430 — Pneumatic hose ID 19.00 mm, length 2.5 m, screw-on claw coupling
• 9 2102 0020 — Claw coupling, metal sealing, 3/4" ID

Miscellaneous Accessories

• 9 9902 0120 — Multi oil for cleaning and protection

Technical specifications

• Order number: 2 1402 0030
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck: MT3
• Valve type: Safety twist throttle
• Direction of rotation: clockwise
• Drilling diameter capacity in steel: 25.00 mm
• Reaming diameter capacity in steel: 22.00 mm
• Torque: 146 Nm
• Speed (free): 40 rpm
• Power: 0.68 kW
• Air consumption: 0.68 m³/min
• Height with feed spindle: 285.00 mm
• Connection: R3/8" male
• Noise level LpA: 93.8 dB(A)
• Noise level LWA: 105.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 8.0 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
