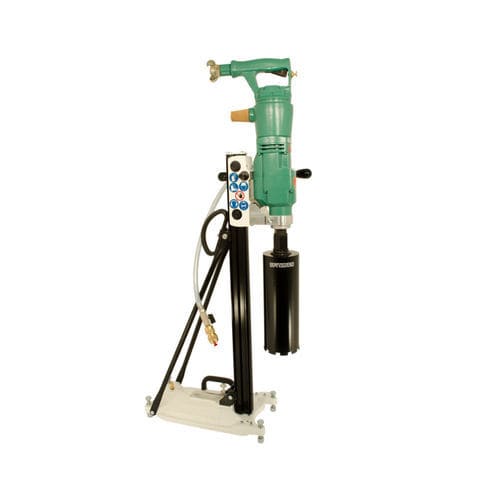

Concrete core drill 2 1335 0010

Product description
The pneumatic core drill unit is designed for hand-operated and rig-mounted drilling in concrete, natural stone and masonry. It supports free-hand drilling up to 82 mm and rig-mounted drilling up to 160 mm. The unit is suitable for industrial applications such as energy and pipeline construction as well as plant and mechanical engineering. ATEX certified: II2GExhIIBT6Gb.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Free-hand drilling: up to dia. 82 mm
• Drilling with drill rig: up to dia. 160 mm
• ATEX: II2GExhIIBT6Gb

Technical data (table)
ORDER NO.: 2 1335 0010
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 6 bar
Drill bit adapter: 1 1/4" UNC male / R1/2" female
Drill bit max. dia.: 160.00 mm
To use for: free-hand drilling/with drill rig
Gear stages: 3
Speed stages: 300/700/1,350 rpm
Torque stages: 90/56/29 Nm
Power: 2.80 kW
Air consumption: 3.50 m³/min
Tool adapter center dia.: 60.00 mm
Total length: 594.00 mm
Connection: R3/4"male
Cooling connection: Gardena system
Noise level LpA: 83.0 dB(A)
Noise level LWA: 94.0 dB(A)
Vibration level: <2.5 m/s²
Weight: 9.2 kg
Fields of application / branch: Energy and pipeline construction; Plant and mechanical construction

Accessories (selected)
Drill bits (selection)

• ORDER NO. 9 2527 0010 · Drill bit dia. 16.00 mm · Optimum drilling speed 4,500 rpm · Peripheral speed 3.53 m/s · Connection R1/2" · Usable length 320.00 mm
• ORDER NO. 9 2527 0020 · Drill bit dia. 20.00 mm · Optimum drilling speed 3,200 rpm · Peripheral speed 3.35 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0030 · Drill bit dia. 25.00 mm · Optimum drilling speed 2,500 rpm · Peripheral speed 3.27 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0040 · Drill bit dia. 30.00 mm · Optimum drilling speed 2,200 rpm · Peripheral speed 3.45 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0050 · Drill bit dia. 35.00 mm · Optimum drilling speed 1,900 rpm · Peripheral speed 3.48 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0060 · Drill bit dia. 40.00 mm · Optimum drilling speed 1,700 rpm · Peripheral speed 3.55 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0070 · Drill bit dia. 45.00 mm · Optimum drilling speed 1,500 rpm · Peripheral speed 3.53 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0080 · Drill bit dia. 50.00 mm · Optimum drilling speed 1,300 rpm · Peripheral speed 3.40 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0090 · Drill bit dia. 55.00 mm · Optimum drilling speed 1,200 rpm · Peripheral speed 3.45 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0100 · Drill bit dia. 60.00 mm · Optimum drilling speed 1,100 rpm · Peripheral speed 3.45 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0110 · Drill bit dia. 68.00 mm · Optimum drilling speed 1,000 rpm · Peripheral speed 3.40 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2527 0120 · Drill bit dia. 72.00 mm · Optimum drilling speed 900 rpm · Peripheral speed 3.30 m/s · Connection R1/2" · Usable length 400.00 mm
• ORDER NO. 9 2526 0140 · Drill bit dia. 82.00 mm · Optimum drilling speed 800 rpm · Peripheral speed 3.35 m/s · Connection 1 1/4" UNC · Usable length 450.00 mm
• ORDER NO. 9 2526 0160 · Drill bit dia. 92.00 mm · Optimum drilling speed 680 rpm · Peripheral speed 3.20 m/s · Connection 1 1/4" UNC · Usable length 450.00 mm
• ORDER NO. 9 2526 0180 · Drill bit dia. 102.00 mm · Optimum drilling speed 620 rpm · Peripheral speed 3.25 m/s · Connection 1 1/4" UNC · Usable length 450.00 mm
• ORDER NO. 9 2526 0200 · Drill bit dia. 112.00 mm · Optimum drilling speed 570 rpm · Peripheral speed 3.28 m/s · Connection 1 1/4" UNC · Usable length 450.00 mm
• ORDER NO. 9 2526 0220 · Drill bit dia. 122.00 mm · Optimum drilling speed 520 rpm · Peripheral speed 3.26 m/s · Connection 1 1/4" UNC · Usable length 450.00 mm
• ORDER NO. 9 2526 0240 · Drill bit dia. 132.00 mm · Optimum drilling speed 470 rpm · Peripheral speed 3.20 m/s · Connection 1 1/4" UNC · Usable length 450.00 mm
• ORDER NO. 9 2526 0260 · Drill bit dia. 142.00 mm · Optimum drilling speed 420 rpm · Peripheral speed 3.07 m/s · Connection 1 1/4" UNC · Usable length 450.00 mm
• ORDER NO. 9 2526 0280 · Drill bit dia. 152.00 mm · Optimum drilling speed 390 rpm · Peripheral speed 3.06 m/s · Connection 1 1/4" UNC · Usable length 450.00 mm

Other accessories (selection)

• Drill rig: ORDER NO. 2 1317 9500 · Drill rig for angular holes under 45°-90° up to dia. 160 mm
• Clamp for pipes: ORDER NO. 2 1313 8500 · For pipe dia. 150.00 up to 600.00 mm (to use with drill rig type 9 4101 0080)
• Drill chucks and adapters: ORDER NO. 9 2902 0280; 9 2902 0290; 9 2902 0350; 9 2902 0240; 9 2911 0040; 9 2911 0050
• Extensions for drill bits (selection): ORDER NO. 2 1315 7020 (300 mm; 1 1/4" UNC female → R1/2" female), 2 1319 7020 (100 mm; 1 1/4" UNC female → 1 1/4" UNC male), 2 1318 7020 (200 mm), 2 1314 7020 (300 mm), 2 1316 7020 (400 mm), 2 1322 7020 (500 mm)
• Service units (selection): ORDER NO. 9 2406 0260 · Service unit, portable, pressure regulator 3/4"; ORDER NO. 9 2406 0650 · Service unit, portable, protection housing, pressure regulator 3/4"
• Hoses and fittings (selection): ORDER NO. 9 3610 0430 · Pneumatic pressure hose ID 19 mm, 2.5 m length; ORDER NO. 9 2102 0020 · Claw coupling, metal sealing, 3/4" ID

Technical specifications

• Model name: Core Drill Unit
• Order number: 2 1335 0010
• Max. drill bit diameter with drill rig: 160 mm
• Free-hand drilling max. diameter: 82 mm
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Power: 2.80 kW
• Speed stages: 300 / 700 / 1,350 rpm
• Torque stages: 90 / 56 / 29 Nm
• Air consumption: 3.50 m³/min
• Weight: 9.2 kg
• ATEX: II2GExhIIBT6Gb
