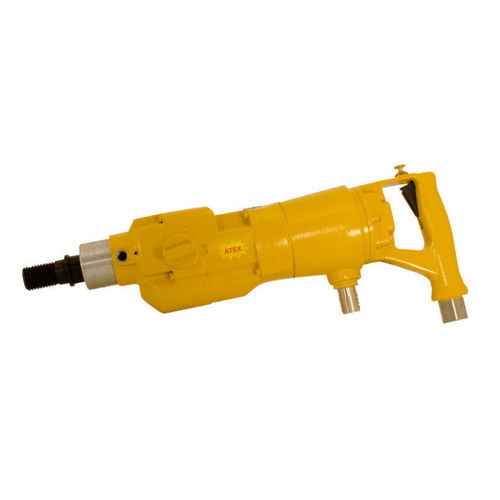

Pneumatic core drilling machine 2 1353 0010

hand-heldwith cooling systemfor hazardous areas

Product description
The pneumatic core drill unit for hand-operated drilling in concrete, stone and masonry up to 82 mm diameter (free-hand) and up to 160 mm diameter when used with a drill rig. Suitable for underwater operation and ATEX-certified for gas group IIB, temperature class T6.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Free-hand drilling: up to dia. 82 mm
• Drilling with drill rig: up to dia. 160 mm
• Underwater operation
• ATEX: II2GExhIIBT6Gb

Technical Data
ORDER NO.: 2 1353 0010
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 6 bar
Drill bit adapter: 1 1/4" UNC male / R1/2" female
Drill bit max. dia.: 160.00 mm
To use for: free-hand drilling/with drill rig
Gear stages: 3
Speed stages: 400/900/1,600 rpm
Torque stages: 49/31/16 Nm
Power: 1.60 kW
Air consumption: 2.20 m³/min
Tool adapter center dia.: 60.00 mm
Total length: 540.00 mm
Connection: R3/4" male
Cooling connection: Gardena system
Noise level LpA: 83.0 dB(A)
Noise level LWA: 94.0 dB(A)
Vibration level: <2.5 m/s²
Weight: 8.2 kg
Fields of application: Energy and pipeline construction; Plant and mechanical construction; Underwater Work

Accessories
Drill bits

• 9 2527 0010 | 16.00 mm | Optimum drilling speed: 4,500 rpm | Peripheral speed: 3.53 m/s | Connection: R1/2" | Usable length: 320 mm
• 9 2527 0020 | 20.00 mm | 3,200 rpm | 3.35 m/s | R1/2" | 400 mm
• 9 2527 0030 | 25.00 mm | 2,500 rpm | 3.27 m/s | R1/2" | 400 mm
• 9 2527 0040 | 30.00 mm | 2,200 rpm | 3.45 m/s | R1/2" | 400 mm
• 9 2527 0050 | 35.00 mm | 1,900 rpm | 3.48 m/s | R1/2" | 400 mm
• 9 2527 0060 | 40.00 mm | 1,700 rpm | 3.55 m/s | R1/2" | 400 mm
• 9 2527 0070 | 45.00 mm | 1,500 rpm | 3.53 m/s | R1/2" | 400 mm
• 9 2527 0080 | 50.00 mm | 1,300 rpm | 3.40 m/s | R1/2" | 400 mm
• 9 2527 0090 | 55.00 mm | 1,200 rpm | 3.45 m/s | R1/2" | 400 mm
• 9 2527 0100 | 60.00 mm | 1,100 rpm | 3.45 m/s | R1/2" | 400 mm
• 9 2527 0110 | 68.00 mm | 1,000 rpm | 3.40 m/s | R1/2" | 400 mm
• 9 2527 0120 | 72.00 mm | 900 rpm | 3.30 m/s | R1/2" | 400 mm
• 9 2526 0140 | 82.00 mm | 800 rpm | 3.35 m/s | 1 1/4" UNC | 450 mm
• 9 2526 0160 | 92.00 mm | 680 rpm | 3.20 m/s | 1 1/4" UNC | 450 mm
• 9 2526 0180 | 102.00 mm | 620 rpm | 3.25 m/s | 1 1/4" UNC | 450 mm
• 9 2526 0200 | 112.00 mm | 570 rpm | 3.28 m/s | 1 1/4" UNC | 450 mm
• 9 2526 0220 | 122.00 mm | 520 rpm | 3.26 m/s | 1 1/4" UNC | 450 mm
• 9 2526 0240 | 132.00 mm | 470 rpm | 3.20 m/s | 1 1/4" UNC | 450 mm
• 9 2526 0260 | 142.00 mm | 420 rpm | 3.07 m/s | 1 1/4" UNC | 450 mm
• 9 2526 0280 | 152.00 mm | 390 rpm | 3.06 m/s | 1 1/4" UNC | 450 mm

Drill rig

• 2 1317 9500 | Drill rig for angular holes under 45°–90° up to dia. 160 mm

Clamp for pipes

• 2 1313 8500 | Clamp for pipes, to use with drill rig type 9 4101 0080 | For pipe dia.: 150–600 mm

Drill chucks

• 9 2902 0280 | Adapter 1 1/4" UNC female → M18x1.5 male
• 9 2902 0290 | Adapter 1 1/4" UNC female → Weldon shank 1 1/4" female
• 9 2902 0350 | Adapter 1 1/4" UNC female → Weldon 3/4" female
• 9 2902 0240 | Adapter R 1/2" for drill chuck type 9 2911 0040 and 9 2911 0050
• 9 2911 0040 | Drill chuck for drill bit dia. 3–16 mm
• 9 2911 0050 | Drill chuck for drill bit dia. 1.5–13 mm

Extensions for drill bits

• 2 1315 7020 | Extension | Machine side: 1 1/4" UNC female | Drill bit: R1/2" female | Length: 300 mm
• 2 1319 7020 | Extension | 1 1/4" UNC female → 1 1/4" UNC male | Length: 100 mm
• 2 1318 7020 | Extension | 1 1/4" UNC female → 1 1/4" UNC male | Length: 200 mm
• 2 1314 7020 | Extension | 1 1/4" UNC female → 1 1/4" UNC male | Length: 300 mm
• 2 1316 7020 | Extension | 1 1/4" UNC female → 1 1/4" UNC male | Length: 400 mm
• 2 1322 7020 | Extension | 1 1/4" UNC female → 1 1/4" UNC male | Length: 500 mm

Service units

• 9 2406 0260 | Service unit, portable, pressure regulator 3/4"
• 9 2406 0650 | Service unit, portable, protection housing, pressure regulator 3/4"

Hoses and more

• 9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw coupling
• 9 2102 0020 | Claw coupling, metal sealing, 3/4" ID

Miscellaneous Accessories

• 5 8002 9100 | Water tank 10 l
• 2 1315 9500 | Tool set
• 9 9910 0080 | Carrying case
• 9 9902 0120 | Multi oil for cleaning and protection

Technical specifications

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Free-hand drilling max dia: 82 mm
• Drilling with drill rig max dia: 160 mm
• ATEX: II2GExhIIBT6Gb
• Gear stages: 3
• Speed stages: 400 / 900 / 1,600 rpm
• Torque stages: 49 / 31 / 16 Nm
• Power: 1.60 kW
• Air consumption: 2.20 m³/min
• Tool adapter center dia: 60.00 mm
• Total length: 540.00 mm
• Connection: R3/4" male
• Cooling connection: Gardena system
• Noise level LpA: 83.0 dB(A)
• Noise level LWA: 94.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 8.2 kg
• Fields of application: Energy and pipeline construction; Plant and mechanical construction; Underwater work
