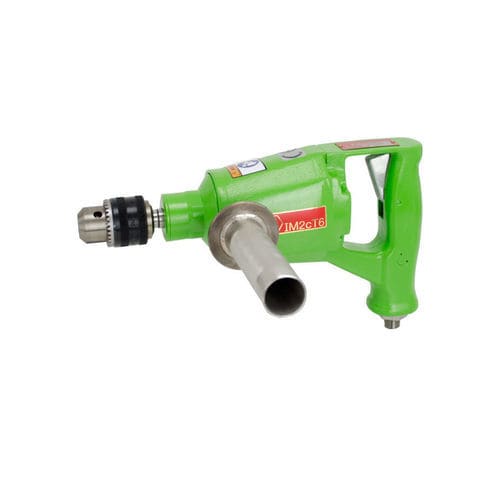

Hand drill 2 1310 0010

Product overview
The pneumatic D-handle drill is intended for drilling up to 13 mm diameter in steel and common construction materials. It features a geared chuck for positive bit engagement and is certified for use in explosive atmospheres (ATEX) group 1 — underground coal mining, category M2.

Main attributes

• Energy source: Pneumatic
• Drill chuck: max. dia. 13 mm (geared chuck)
• ATEX: IM2ExhIMbT6 — suitable for underground coal mining (category M2)
• Operating pressure: 6 bar
• Speed (under load): 650 rpm
• Power: 0.65 kW

Technical data

• ORDER NO.: 2 1310 0010
• ATEX Specification: IM2ExhIMbT6
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck dia.: 13.00 mm (Geared chuck)
• Drilling capacity in steel: 13.00 mm
• Speed (under load): 650 rpm
• Power: 0.65 kW
• Air consumption: 0.68 m³/min
• Length with drill chuck: 314.00 mm
• Connection: R3/8" male
• Noise level LpA: 89.0 dB(A)
• Noise level LWA: 100.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 5.7 kg
• Fields of application: Energy and pipeline construction; Mining; Plant and mechanical construction

Accessories
Service units

• 9 2406 0260 — Portable service unit with pressure regulator 3/4“
• 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2“
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4“

Hoses and more

• 9 3610 0410 — Pneumatic hose ID 13.00 mm, 2.5 m length, screw-on claw coupling
• 9 3610 0420 — Pneumatic hose ID 16.00 mm, 2.5 m length, screw-on claw coupling
• 9 3610 0430 — Pneumatic hose ID 19.00 mm, 2.5 m length, screw-on claw coupling
• 9 2102 0020 — Claw coupling, metal sealing, 3/4” ID

Miscellaneous Accessories

• 9 9910 0090 — Carrying case
• 9 9902 0120 — Multi oil for cleaning and protection
