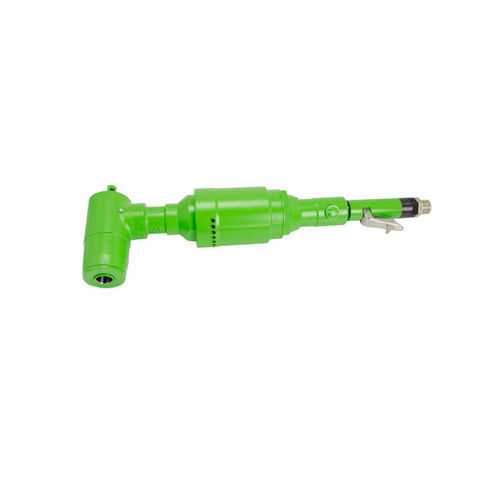

Pneumatic drill 2 1801 0010

ATEX

Short description
Pneumatic corner drill designed for drilling and reaming in confined or angled workspaces. Equipped with an MT3 tool holder and ATEX certification IM2ExhIMbT6 for safe use in underground mining environments. Suitable for steel drilling up to 32 mm and reaming up to 26 mm.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Tool holder / Shank: MT3
• Actuation / Valve type: Safety lever valve
• Direction of rotation: right
• ATEX: IM2ExhIMbT6
• Primary application: Underground mining

Technical Data

• Order number: 2 1801 0010
• ATEX specification: IM2ExhIMbT6
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Shank: MT3
• Valve type: Safety lever valve
• Direction of rotation: right
• Drilling capacity (steel): 32.00 mm
• Reaming capacity (steel): 26.00 mm
• Torque: 72 Nm
• Speed (free): 520 rpm
• Speed (under load): 260 rpm
• Power: 1.92 kW
• Air consumption: 1.80 m3/min
• Spindle stroke: 43.00 mm
• Distance of center: 36.50 mm
• Height with feed spindle: 190.00 mm
• Connection: R3/4" male
• Noise level LpA: 93.0 dB(A)
• Noise level LWA: 104.0 dB(A)
• Vibration level: 3.5 m/s²
• Weight: 11.5 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Accessories
Service units

• 9 2406 0260 – Portable service unit with pressure regulator 3/4"
• 9 2406 0630 – Portable service unit with protection housing and pressure regulator 1/2"
• 9 2406 0650 – Portable service unit with protection housing and pressure regulator 3/4"

Hoses and more

• 9 3610 0410 – Pneumatic hose ID 13 mm, 2.5 m length, screw-on claw coupling
• 9 3610 0420 – Pneumatic hose ID 16 mm, 2.5 m length, screw-on claw coupling
• 9 3610 0430 – Pneumatic hose ID 19 mm, 2.5 m length, screw-on claw coupling
• 9 2102 0020 – Claw coupling, metal sealing, 3/4” ID

Miscellaneous Accessories

• 9 9902 0120 – Multi oil for cleaning and protection

Fields of application

• Energy and pipeline construction
• Metal industry and steel construction
• Mining (underground)
• Plant and mechanical construction
