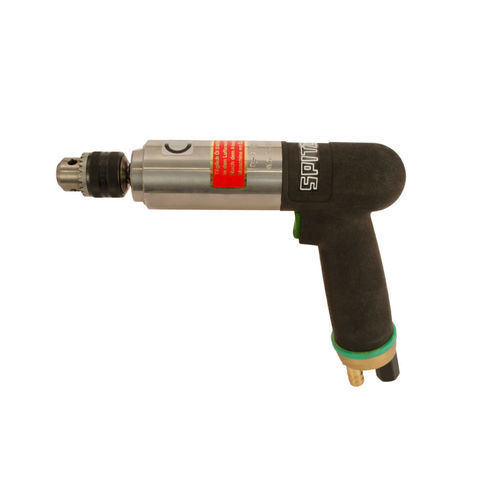

Hand drill 2 1267 0010
Add to favorites
Compare this product
Description
Product description
Compact pneumatic pistol drill for universal use. Accepts drill bits up to 10 mm. Certified for ATEX zones and designed for underwater operation, suitable for industrial and offshore applications where pneumatic power is required.
Main attributes
Technical Data
Fields of application / branch
Accessories
Technical specifications
Compact pneumatic pistol drill for universal use. Accepts drill bits up to 10 mm. Certified for ATEX zones and designed for underwater operation, suitable for industrial and offshore applications where pneumatic power is required.
Main attributes
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Drill chuck: max. dia. 10 mm
- Underwater operation
- ATEX: II2GExhIIBT6Gb
Technical Data
- ORDER NO.: 2 1267 0010
- ATEX Specification: II2GExhIIBT6Gb
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Drill chuck max. dia.: 10.00 mm
- Drilling capacity dia. in steel: 10.00 mm
- Speed (free): 1,550 rpm
- Power: 0.50 kW
- Air consumption: 0.60 m³/min
- Length with drill chuck: 235.00 mm
- Connection: R1/4" female
- Noise level LpA: 84.0 dB(A)
- Noise level LWA: 95.0 dB(A)
- Vibration level: less than 2.5 m/s²
- Weight: 2.1 kg
Fields of application / branch
- Energy and pipeline construction
- Metal industry and steel construction
- Mining
- Plant and mechanical construction
- Underwater work
Accessories
- Service units
- 9 2406 0260 — Portable service unit with pressure regulator 3/4”
- 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2”
- 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4”
- Hoses and more
- 9 3610 0410 — Pneumatic hose ID 13 mm, 2.5 m length, screw-on claw coupling
- 9 3610 0420 — Pneumatic hose ID 16 mm, 2.5 m length, screw-on claw coupling
- 9 3610 0430 — Pneumatic hose ID 19 mm, 2.5 m length, screw-on claw coupling
- 9 2102 0020 — Claw coupling, metal sealing, 3/4” ID
- Miscellaneous Accessories
- 9 9910 0090 — Carrying case
- 9 9902 0120 — Multi oil for cleaning and protection
Technical specifications
- ORDER NO.: 2 1267 0010
- ATEX Specification: II2GExhIIBT6Gb
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Drill chuck max. dia.: 10.00 mm
- Drilling capacity dia. in steel: 10.00 mm
- Speed (free): 1,550 rpm
- Power: 0.50 kW
- Air consumption: 0.60 m³/min
- Length with drill chuck: 235.00 mm
- Connection: R1/4" female
- Noise level LpA: 84.0 dB(A)
- Noise level LWA: 95.0 dB(A)
- Vibration level: less than 2.5 m/s²
- Weight: 2.1 kg
