- Materials - Tools - Components
- Hand Tool, Power Tool
- Pneumatic drill
- Spitznas Maschinenfabrik GmbH

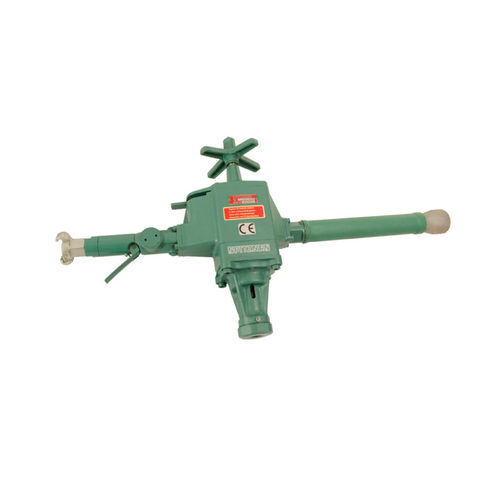

Pneumatic drill 2 2085 0010compactconstructionATEX
Add to favorites
Compare this product
Characteristics
- Power source
- pneumatic
- Other characteristics
- compact, ATEX, construction
- Rotational speed
250 rpm
(1,570.8 rad.min-1)- Power
1,000 W
- Torque
46 Nm
(33.93 ft.lb)- Drilling diameter
23 mm
(0.91 in)
Description
Product overview
Pneumatic feed-spindle drill with infinitely variable speed control via a safety lever valve. Drilling depth is adjustable using the star knob. Reversible for clockwise and anti-clockwise operation, suitable for on-site and workshop drilling tasks in steel and construction applications. Compact design with MT2 drill chuck and ATEX II2GExhIIBT6Gb certification for hazardous areas.
Main features
Technical data
Applications
Accessories
Service units
Hoses and more
Miscellaneous Accessories
Pneumatic feed-spindle drill with infinitely variable speed control via a safety lever valve. Drilling depth is adjustable using the star knob. Reversible for clockwise and anti-clockwise operation, suitable for on-site and workshop drilling tasks in steel and construction applications. Compact design with MT2 drill chuck and ATEX II2GExhIIBT6Gb certification for hazardous areas.
Main features
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Drill chuck: MT2
- Valve type: Safety lever valve (lever valve)
- Direction of rotation: clockwise / anti-clockwise
- ATEX: II2GExhIIBT6Gb
- Drilling capacity (steel): 23.00 mm
- Reaming capacity (steel): 17.00 mm
- Torque: 46 Nm
- Speed (free): 250 rpm
- Power: 1.00 kW
- Air consumption: 1.20 m³/min
- Height with feed spindle: 410.00 mm
- Connection: R3/4 male
- Noise level LpA: 92.0 dB(A)
- Noise level LWA: 103.0 dB(A)
- Vibration level: 3.3 m/s²
- Weight: 12.0 kg
Technical data
- ORDER NO.: 2 2085 0010
- ATEX Specification: II2GExhIIBT6Gb
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Drill chuck: MT2
- Valve type: Safety lever valve
- Direction of rotation: clockwise / anti-clockwise
- Drilling dia. capacity in steel: 23.00 mm
- Reaming dia. capacity in steel: 17.00 mm
- Torque: 46 Nm
- Speed (free): 250 rpm
- Power: 1.00 kW
- Air consumption: 1.20 m³/min
- Height with feed spindle: 410.00 mm
- Connection: R3/4 male
- Noise level LpA: 92.0 dB(A)
- Noise level LWA: 103.0 dB(A)
- Vibration level: 3.3 m/s²
- Weight: 12.0 kg
Applications
- Energy and pipeline construction
- Metal industry and steel construction
- Plant and mechanical construction
Accessories
Service units
- 9 2406 0260 — Portable service unit with pressure regulator 3/4"
- 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2"
- 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"
Hoses and more
- 9 3610 0410 — Pneumatic hose ID 13.00 mm, length 2.5 m, screw-on claw coupling
- 9 3610 0420 — Pneumatic hose ID 16.00 mm, length 2.5 m, screw-on claw coupling
- 9 3610 0430 — Pneumatic hose ID 19.00 mm, length 2.5 m, screw-on claw coupling
- 9 2102 0020 — Claw coupling, metal sealing, 3/4” ID
Miscellaneous Accessories
- 9 9902 0120 — Multi oil for cleaning and protection
