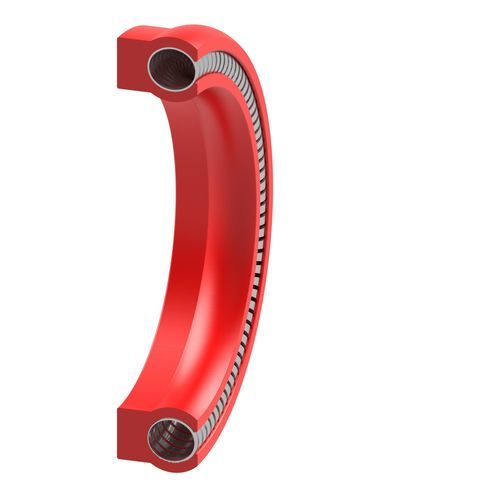

Dynamic seal Varitef SH

spiralstainless steelPTFE

Product description
Varitef SH is a single-acting (active) sealing element composed of a PTFE sealing ring combined with a stainless steel spiral spring as preload. The design increases contact force as system pressure rises, making the seal self-energizing and suitable for compensating larger gaps. The PTFE compound is available with special fillers (e.g. carbon) to improve compressive strength. Its material combination allows wide temperature use and sterilization, which makes Varitef SH appropriate for valves, pumps, dosing systems and blenders in food and medical technology. Suitable for slow rotating movements and linear applications.

Fields of application

• static
• dynamic
• single acting (active)
• double acting (inactive)
• linear (active)
• rotating (inactive)
• oscillating (inactive)

Main use
valves, pumps, dosing devices, blenders; food and medical technology

Materials
PTFE (filled variants available); stainless steel spiral spring; compatible metallic components

Technical values

• Materials: PTFE with optional fillers (e.g. carbon), stainless steel spiral spring
• Pressure rating: up to 35 MPa
• Temperature range: -150°C to +225°C (material dependent)
• Maximum sliding speed: up to 20 m/s (application dependent)
• Note: Maximum values for temperature, speed and pressure are not simultaneously applicable; performance depends on material variant and media.

Specifications / assembly

• Product type: single-acting sealing element
• Seal material: PTFE (filled options for enhanced compressive strength)
• Preload: stainless steel spiral spring
• Typical applications: valves, pumps, dosing systems, food and medical equipment
• Features: bridges larger gaps; suitable for slow rotation
• Recommended groove: open groove preferred for straightforward assembly; limitations exist for closed groove designs
