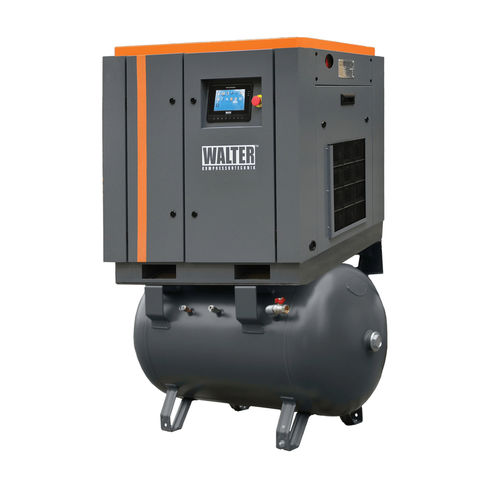

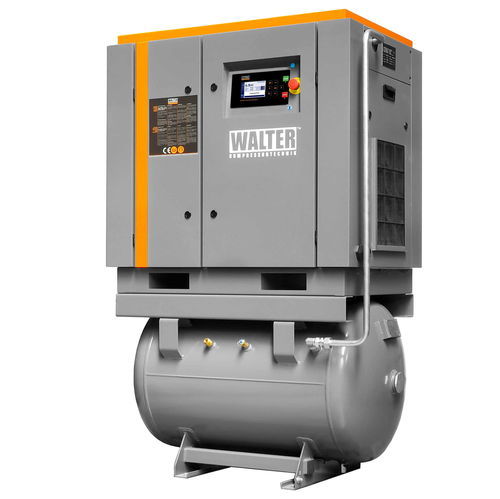

Screw compressor SKTG SPairelectric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electric motor
- Portability
- stationary
- Application domain
- industrial
- Other characteristics
- with tank
- Tank volume
270 l
(71.3 gal)- Pressure
Min.: 8 bar
(116.03 psi)Max.: 13 bar
(188.55 psi)- Flow
Min.: 33 m³/h
(1,165.38 ft³/h)Max.: 51 m³/h
(1,801.05 ft³/h)- Power
5.5 kW
(7.48 hp)- Length
1,120 mm
(44.09 in)- Width
720 mm
(28.35 in)- Height
1,710 mm
(67.32 in)- Weight
300 kg
(661.4 lb)- Noise level
62 dB
Description
Description
The SKTG 5,5 SP screw compressor is mounted on a 270 L horizontal receiver and is designed to generate compressed air for workshops and small industrial installations. It provides three pressure settings: 8 / 10 / 13 bar and capacities of 0.85 / 0.7 / 0.55 m³/min. It is driven by a 5.5 kW motor and features a G 3/4\" outlet for integration with air systems.
SKTG 5,5 SP — compact screw compressor
The unit operates at a noise level of 62 dB(A) and is mounted on a 270 L tank to allow stable installation in a workshop or production hall. Dimensions 1120 × 720 × 1710 mm and weight 300 kg support safe stationary operation.
Features
Technical specifications
The SKTG 5,5 SP screw compressor is mounted on a 270 L horizontal receiver and is designed to generate compressed air for workshops and small industrial installations. It provides three pressure settings: 8 / 10 / 13 bar and capacities of 0.85 / 0.7 / 0.55 m³/min. It is driven by a 5.5 kW motor and features a G 3/4\" outlet for integration with air systems.
SKTG 5,5 SP — compact screw compressor
The unit operates at a noise level of 62 dB(A) and is mounted on a 270 L tank to allow stable installation in a workshop or production hall. Dimensions 1120 × 720 × 1710 mm and weight 300 kg support safe stationary operation.
Features
- Application: workshops and small industrial installations
- Three pressure settings: 8 / 10 / 13 bar
- Capacity: 0.85 / 0.7 / 0.55 m³/min
- Noise level: 62 dB(A)
- Drive: 5.5 kW motor
- Connection: G 3/4\"
Technical specifications
- Tank (L): 270
- Pressure (bar): 8 / 10 / 13
- Flow (m3/min): 0.85 / 0.7 / 0.55
- Power (kW): 5.5
- Connection: G 3/4\"
- Noise dB(A): 62
- Weight (kg): 300
- Length (mm): 1120
- Width (mm): 720
- Height (mm): 1710
