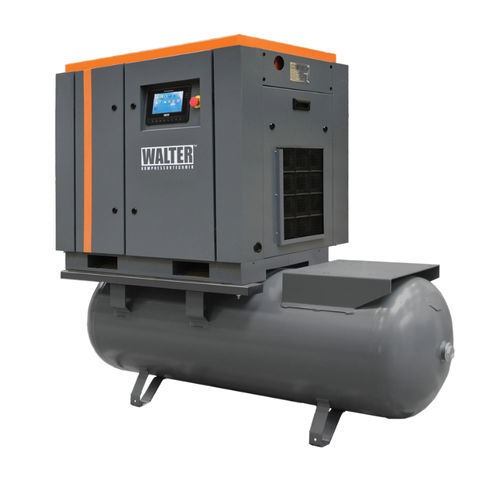

Screw compressor SFTG 7,5 KSP
airelectrically-poweredstationary

Screw compressor - SFTG 7,5 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / electrically-powered / stationary
Screw compressor - SFTG 7,5 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / electrically-powered / stationary
Add to favorites
Compare this product

Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Other characteristics
with tank, single-stage, horizontal
Tank volume

500 l
(132.1 gal)

Pressure

8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 0.95 m³/min
(33.55 ft³/min)

Min.: 0.42 m³/min
(14.83 ft³/min)

Power

7.5 kW
(10.2 hp)

Length

1,970 mm
(77.56 in)

Width

720 mm
(28.35 in)

Height

1,700 mm
(66.93 in)

Weight

383 kg
(844.4 lb)

Noise level

65 dB

Description

Overview
Single-stage screw compressor SFTG 7,5 KSP is mounted on a horizontal 500 L tank and is designed for compressed air installations with variable demand. Three pressure variants (8 / 10 / 13 bar) and a variable capacity range allow adjustment of operating parameters to current needs. The compressor is equipped with a 7.5 kW motor and a G 3/4" connection for easy integration into existing systems.

Design / Integrated tank
The model features an integrated compressor and tank assembly, reducing required footprint and simplifying installation. Dimensions 1970 × 720 × 1700 mm and weight 383 kg ensure stable placement. Noise level 65 dB(A) supports comfortable daily operation.

Benefits
  • Single-stage screw design providing stable operation under variable load
  • Integrated horizontal 500 L tank — space saving and easy installation
  • Three pressure options: 8 / 10 / 13 bar to match installation requirements
  • Variable output depending on pressure (specified performance ranges)
  • Low noise level: 65 dB(A)

Technical data (table)
Tank (L) : 500
Pressure (bar) : 8 / 10 / 13
Flow (m3/min) : 0.42 - 1.15 / 0.36 - 1.0 / 0.43 - 0.95
Power (kW) : 7.5
Connection : G 3/4"
Noise (dB(A)) : 65
Weight (kg) : 383
Length (mm) : 1970
Width (mm) : 720
Height (mm) : 1700

Features / technical specifications
  • Type: single-stage screw compressor
  • Integrated tank: horizontal, 500 L
  • Working pressure: 8 / 10 / 13 bar
  • Flow (dependent on pressure): 0.42 - 1.15 / 0.36 - 1.0 / 0.43 - 0.95 m³/min
  • Motor power: 7.5 kW
  • Connection: G 3/4"
  • Noise level: 65 dB(A)
  • Weight: 383 kg
  • Dimensions (L × W × H): 1970 × 720 × 1700 mm
