Screw compressor SF 11 KSP
airelectricstationary

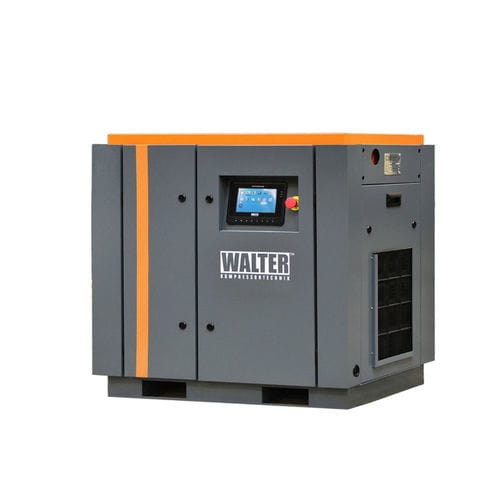

Screw compressor - SF 11 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / electric / stationary
Screw compressor - SF 11 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / electric / stationary
Add to favorites
Compare this product

Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Application domain
industrial
Other characteristics
compact, single-stage, with electronic control
Pressure

8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 1.3 m³/min
(45.91 ft³/min)

Min.: 0.67 m³/min
(23.66 ft³/min)

Power

11 kW
(14.96 hp)

Length

1,165 mm
(45.87 in)

Width

786 mm
(30.94 in)

Height

1,061 mm
(41.77 in)

Weight

243 kg
(535.7 lb)

Noise level

67 dB

Description

Product description
One-stage screw compressor designed as a freestanding unit to supply compressed air systems with variable demand. Three pressure options (8 / 10 / 13 bar) and selectable performance ranges (0.67 - 1.65 / 0.58 - 1.50 / 0.74 - 1.30 m³/min) allow adaptation of operating parameters to current needs. The unit is fitted with an 11 kW motor and a G 3/4" connection for straightforward installation.

Control
The model features a compact layout and microprocessor-based control for reliable regulation of operation.

Construction and dimensions
Dimensions: 1165 × 786 × 1061 mm; Weight: 243 kg; Noise level: 67 dB(A).

Technical data
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 0.67 - 1.65 / 0.58 - 1.50 / 0.74 - 1.30
Power (kW): 11
Connection: G 3/4"
Noise (dB(A)): 67
Weight (kg): 243
Length (mm): 1165
Width (mm): 786
Height (mm): 1061

Features / Technical specifications
  • Type: one-stage screw compressor, freestanding
  • Operating pressure: 8 / 10 / 13 bar
  • Performance (range): 0.67 - 1.65 / 0.58 - 1.50 / 0.74 - 1.30 m³/min
  • Motor power: 11 kW
  • Connection: G 3/4"
  • Noise level: 67 dB(A)
  • Weight: 243 kg
  • Dimensions (L × W × H): 1165 × 786 × 1061 mm
  • Control: microprocessor
