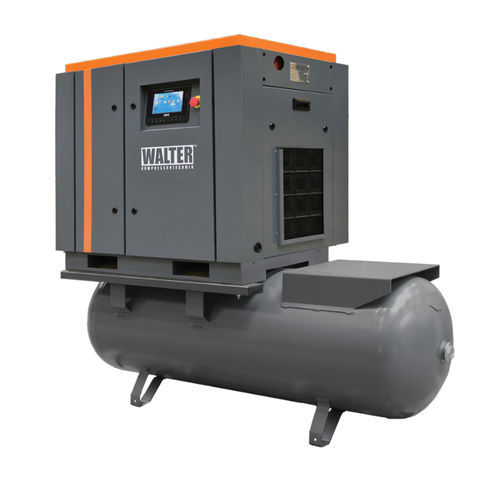

Screw compressor SFTG 11 KSP
airpneumaticstationary

Screw compressor - SFTG 11 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / pneumatic / stationary
Screw compressor - SFTG 11 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / pneumatic / stationary
Add to favorites
Compare this product

Characteristics

Technology
screw
Type
air
Power source
pneumatic
Portability
stationary
Application domain
industrial
Other characteristics
tank-mounted, with tank, horizontal
Tank volume

500 l
(132.1 gal)

Pressure

8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 1.3 m³/min
(45.91 ft³/min)

Min.: 0.67 m³/min
(23.66 ft³/min)

Power

11 kW
(14.96 hp)

Length

1,970 mm
(77.56 in)

Width

760 mm
(29.92 in)

Height

1,750 mm
(68.9 in)

Weight

430 kg
(948 lb)

Noise level

67 dB

Description

Product overview
Single-stage screw compressor SFTG 11 KSP mounted on a horizontal 500 L tank, designed for compressed-air installations with variable demand. Available in three pressure variants — 8 / 10 / 13 bar — and corresponding flow ranges of 0.67–1.65 / 0.58–1.50 / 0.74–1.30 m³/min. Fitted with an 11 kW motor and a G 3/4" connection for easy integration into existing systems.

SFTG 11 KSP — convenience in daily operation
The integrated compressor-and-tank design saves floor space and simplifies installation. With dimensions 1970 × 760 × 1750 mm and a weight of 430 kg, the unit provides stable installation. Noise level is 67 dB(A), making it suitable for regular industrial environments. An all-in-one solution offering flexible operating parameters to adapt to changing production needs.

Technical data
Tank (L): 500
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 0.67 - 1.65 / 0.58 - 1.50 / 0.74 - 1.30
Power (kW): 11
Connection: G 3/4"
Sound level dB(A): 67
Weight kg: 430
Length mm: 1970
Width mm: 760
Height mm: 1750

Characteristics / technical specifications
  • Tank capacity: 500 L
  • Available working pressures: 8, 10 or 13 bar
  • Flow ranges depending on pressure: 0.67–1.65 m³/min; 0.58–1.50 m³/min; 0.74–1.30 m³/min
  • Motor power: 11 kW
  • Connection: G 3/4"
  • Noise level: 67 dB(A)
  • Dimensions (L×W×H): 1970 × 760 × 1750 mm
  • Weight: 430 kg
  • Design: integrated compressor + tank (all-in-one)
