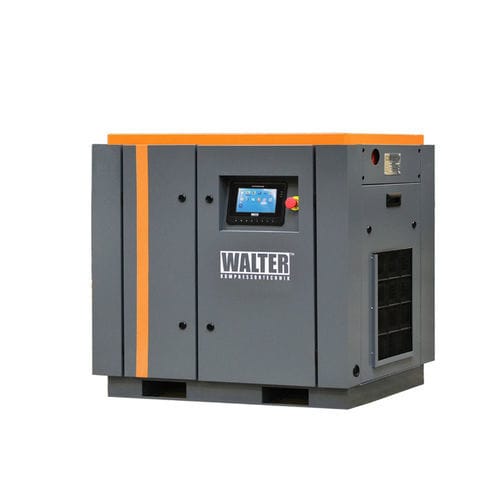

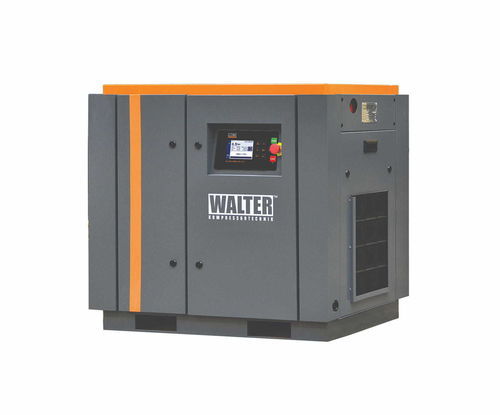

Air compressor unit SK 5,5 SP

screwsilentstationary

Product description
The SK 5,5 SP screw compressor is a freestanding, single-stage compact unit designed to produce compressed air for workshops and small industrial installations. Available in working pressure variants 8 / 10 / 13 bar and flow options 0.85 / 0.7 / 0.55 m³/min. Driven by a 5.5 kW motor and equipped with a connection G 3/4".

Key features

• Low noise level: 62 dB(A)
• Working pressure variants: 8 / 10 / 13 bar
• Flow variants: 0.85 / 0.7 / 0.55 m³/min
• Motor power: 5.5 kW
• Connection: G 3/4"
• Compact design suitable for workshops and production halls

Dimensions and construction
Compact external dimensions listed as 1020 × 720 × 1000 mm. Technical table provides detailed dimensions: length 1035 mm, width 730 mm, height 995 mm.

Applications
Designed to power pneumatic tools and for industrial applications with small to medium compressed-air demand. Construction ensures reliable operation for daily use.

Characteristics / technical specifications

• Working pressure: 8 / 10 / 13 bar
• Flow rate: 0.85 / 0.7 / 0.55 m³/min
• Motor power: 5.5 kW
• Connection: G 3/4"
• Noise level: 62 dB(A)
• Weight: 220 kg
• Dimensions (description): 1020 × 720 × 1000 mm
• Dimensions (technical table): length 1035 mm, width 730 mm, height 995 mm
• Type: freestanding single-stage screw compressor
