Screw compressor SKTG 5,5 SPairelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electric
- Portability
- stationary
- Application domain
- industrial
- Applications
- motor, bar, tank
- Other characteristics
- tank-mounted, with tank, horizontal
- Tank volume
500 l
(132.1 gal)- Pressure
8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)- Flow
0.55 m³/min, 0.7 m³/min, 0.85 m³/min
(19.42 ft³/min, 24.72 ft³/min, 30.02 ft³/min)- Power
5.5 kW
(7.48 hp)- Length
1,970 mm
(77.56 in)- Width
720 mm
(28.35 in)- Height
1,700 mm
(66.93 in)- Weight
350 kg
(771.6 lb)- Noise level
62 dB
Description
Product description

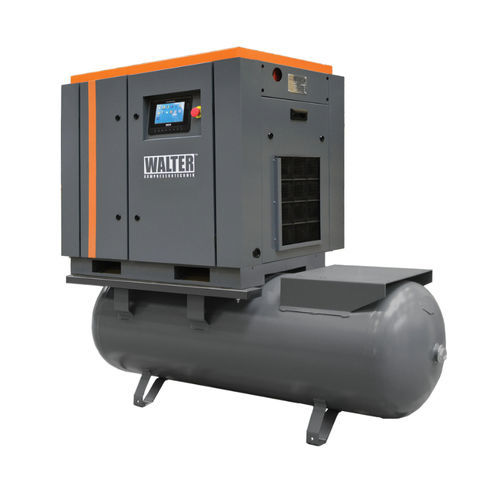

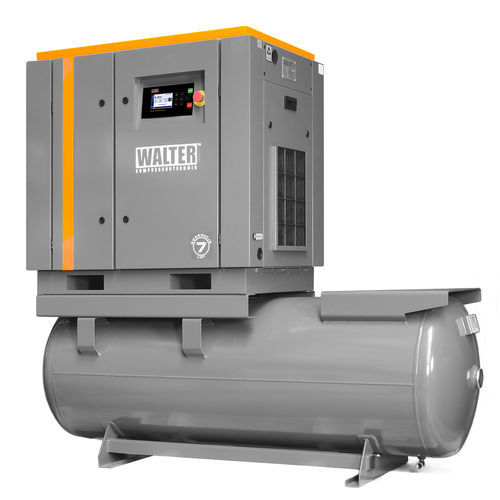

Screw compressor mounted on a 500 L horizontal tank, suitable for industrial compressed air installations. Three pressure settings (8 / 10 / 13 bar) and three nominal flows (0.85 / 0.7 / 0.55 m³/min) allow adaptation to operational needs. The unit is driven by a 5.5 kW motor and uses a G 3/4" connection for system integration.
Design features
Tank-mounted configuration optimizes floor space and simplifies installation. Dimensions 1970 × 720 × 1700 mm and weight 350 kg provide stable placement. Noise level 62 dB(A) supports use in workshops and production areas.
Technical data
Screw compressor mounted on a 500 L horizontal tank, suitable for industrial compressed air installations. Three pressure settings (8 / 10 / 13 bar) and three nominal flows (0.85 / 0.7 / 0.55 m³/min) allow adaptation to operational needs. The unit is driven by a 5.5 kW motor and uses a G 3/4" connection for system integration.
Design features
Tank-mounted configuration optimizes floor space and simplifies installation. Dimensions 1970 × 720 × 1700 mm and weight 350 kg provide stable placement. Noise level 62 dB(A) supports use in workshops and production areas.
Technical data
- Tank: 500 L
- Working pressure: 8 / 10 / 13 bar
- Flow: 0.85 / 0.7 / 0.55 m³/min
- Motor power: 5.5 kW
- Connection: G 3/4"
- Noise level: 62 dB(A)
- Dimensions (L × W × H): 1970 × 720 × 1700 mm
- Weight: 350 kg
