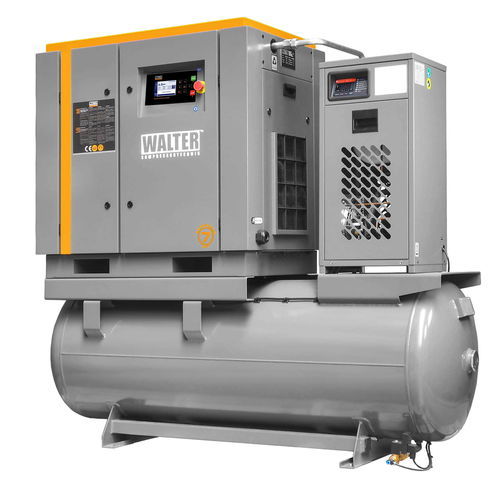

Screw compressor SKTG 5,5 SP COMBO
airpneumaticstationary

Screw compressor - SKTG 5,5 SP COMBO - Walter Kompressortechnik Polska Sp. z o. o. - air / pneumatic / stationary
Screw compressor - SKTG 5,5 SP COMBO - Walter Kompressortechnik Polska Sp. z o. o. - air / pneumatic / stationary
Screw compressor - SKTG 5,5 SP COMBO - Walter Kompressortechnik Polska Sp. z o. o. - air / pneumatic / stationary - image - 2
Add to favorites
Compare this product

Characteristics

Technology
screw
Type
air
Power source
pneumatic
Portability
stationary
Application domain
industrial
Other characteristics
tank-mounted, with tank, single-stage, small, horizontal
Tank volume

500 l
(132.1 gal)

Pressure

8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)

Flow

0.55 m³/min, 0.7 m³/min, 0.85 m³/min
(19.42 ft³/min, 24.72 ft³/min, 30.02 ft³/min)

Power

5.5 kW
(7.48 hp)

Length

1,940 mm
(76.38 in)

Width

650 mm
(25.59 in)

Height

1,460 mm
(57.48 in)

Weight

342 kg
(754 lb)

Noise level

62 dB

Description

Product description
Single-stage screw compressor SKTG 5,5 SP COMBO mounted on a horizontal 500 L tank, designed to generate compressed air efficiently for workshops and small industrial installations. The unit features three pressure settings (8, 10 and 13 bar) and flow rates of 0.85 / 0.70 / 0.55 m³/min. It is driven by a 5.5 kW motor, includes a G 3/4" connection for integration with pneumatic systems and has a low noise level of 62 dB(A).

Functions and application
  • Single-stage screw design providing continuous supply for pneumatic tools.
  • Suitable for workshops and light industrial applications.
  • Mounted on a horizontal 500 L tank for easy installation and operational stability.
  • Three pressure levels: 8, 10, 13 bar.
  • Low noise level: 62 dB(A).

Technical data (table)
Tank (L) : 500
Pressure (bar) : 8 / 10 / 13
Flow rate (m³/min) : 0.85 / 0.70 / 0.55
Power (kW) : 5.5
Connection : G 3/4"
Noise dB(A) : 62
Weight (kg) : 342
Length (mm) : 1940
Width (mm) : 650
Height (mm) : 1460

Characteristics / Technical specifications
  • Tank: 500 L
  • Pressure levels: 8, 10, 13 bar
  • Flow: 0.85 / 0.70 / 0.55 m³/min
  • Motor power: 5.5 kW
  • Connection: G 3/4"
  • Noise level: 62 dB(A)
  • Dimensions (L×W×H): 1940 × 650 × 1460 mm
  • Weight: 342 kg
