Air compressor unit SFTG 5,5 KSP COMBO

screwstationarypositive pressure

Product description

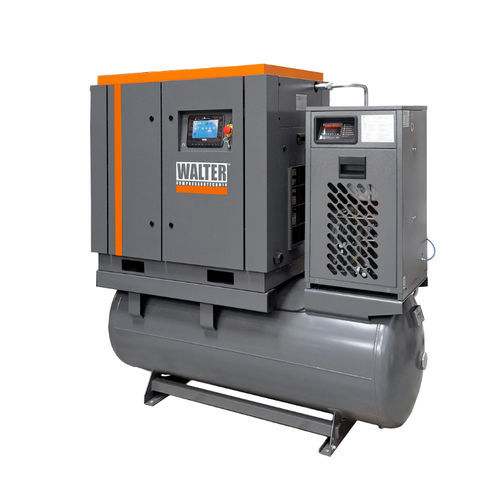

Single-stage screw compressor SFTG 5,5 KSP COMBO is mounted on a horizontal 500 L tank and includes a refrigerated dryer and a set of filters, delivering treated compressed air in a single packaged unit. Available in three pressure variants — 8 / 10 / 13 bar — with corresponding flow ranges 0.42–0.95 / 0.36–0.8 / 0.36–0.64 m³/min, allowing adaptation to operational needs. The unit is driven by a 5.5 kW motor and features a G 3/4" connection for system integration.

SFTG 5,5 KSP COMBO — one compressor, many applications
The model offers an integrated configuration combining compressor, tank and air treatment components in one assembly. Overall dimensions 1970 × 720 × 1700 mm and weight 395 kg ensure stable installation. Sound pressure level of 60 dB(A) supports comfortable operation in industrial environments.

Application
Designed for users requiring a ready-to-install compressed air package without the need for additional treatment equipment.

Technical data:
Tank (L): 500
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 0.42 - 0.95 / 0.36 - 0.8 / 0.36 - 0.64
Power (kW): 5.5
Connection: G 3/4"
Noise (dB(A)): 60
Weight (kg): 395
Length (mm): 1970
Width (mm): 720
Height (mm): 1700

Characteristics / technical specifications

• Tank: 500 L
• Working pressure: 8 / 10 / 13 bar
• Flow rates: 0.42 - 0.95 / 0.36 - 0.8 / 0.36 - 0.64 m³/min
• Motor power: 5.5 kW
• Connection: G 3/4"
• Noise level: 60 dB(A)
• Dimensions (L×W×H): 1970 × 720 × 1700 mm
• Weight: 395 kg
• Equipment: refrigerated dryer and filter set
