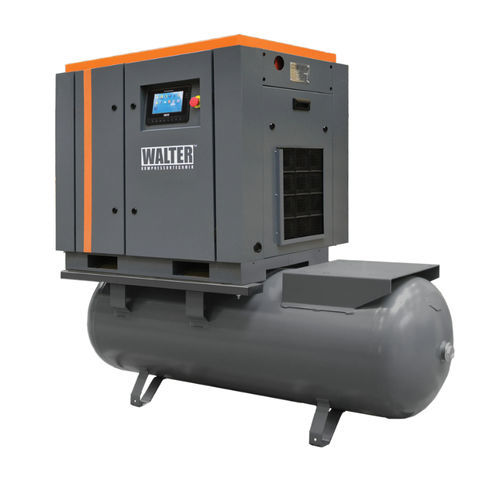

Screw compressor SKTG 11 KSPairelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electric
- Portability
- stationary
- Other characteristics
- tank-mounted, with tank, single-stage, horizontal
- Tank volume
500 l
(132.1 gal)- Pressure
8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)- Flow
1.12 m³/min, 1.5 m³/min, 1.65 m³/min
(39.55 ft³/min, 52.97 ft³/min, 58.27 ft³/min)- Power
11 kW
(14.96 hp)- Length
1,970 mm
(77.56 in)- Width
760 mm
(29.92 in)- Height
1,750 mm
(68.9 in)- Weight
426 kg
(939.2 lb)- Noise level
67 dB
Description
Overview
Single-stage screw compressor SKTG 11 KSP mounted on a horizontal 500 L tank. Available in three pressure variants: 8 / 10 / 13 bar with corresponding flow rates: 1.65 / 1.5 / 1.12 m³/min. Driven by an 11 kW motor and fitted with G 3/4" connection. Integrated tank design optimizes floor space and simplifies installation. Noise level: 67 dB(A).
Technical data
Features / technical specifications
Single-stage screw compressor SKTG 11 KSP mounted on a horizontal 500 L tank. Available in three pressure variants: 8 / 10 / 13 bar with corresponding flow rates: 1.65 / 1.5 / 1.12 m³/min. Driven by an 11 kW motor and fitted with G 3/4" connection. Integrated tank design optimizes floor space and simplifies installation. Noise level: 67 dB(A).
Technical data
- Tank (L): 500
- Pressure (bar): 8 / 10 / 13
- Flow rate (m³/min): 1.65 / 1.5 / 1.12
- Power (kW): 11
- Connection: G 3/4"
- Noise (dB(A)): 67
- Weight (kg): 426
- Dimensions (L × W × H): 1970 × 760 × 1750 mm
Features / technical specifications
- Type: single-stage screw compressor
- Configuration: integrated with horizontal 500 L tank
- Pressure options: 8 / 10 / 13 bar
- Flow rates by pressure: 1.65 / 1.5 / 1.12 m³/min
- Motor power: 11 kW
- Outlet connection: G 3/4"
- Noise level: 67 dB(A)
- Footprint (L×W×H): 1970 × 760 × 1750 mm
- Weight: 426 kg
