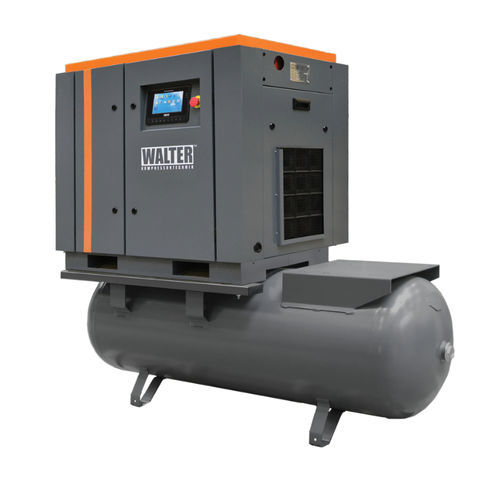

Screw compressor SKTG 15 KSPairelectric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electric motor
- Portability
- stationary
- Other characteristics
- tank-mounted, with tank, single-stage, horizontal
- Tank volume
500 l
(132.1 gal)- Pressure
8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)- Flow
2 m³/min, 2.15 m³/min, 2.25 m³/min
(70.63 ft³/min, 75.93 ft³/min, 79.46 ft³/min)- Power
15 kW
(20.39 hp)- Length
1,970 mm
(77.56 in)- Width
760 mm
(29.92 in)- Height
1,750 mm
(68.9 in)- Weight
429 kg
(945.8 lb)- Noise level
69 dB
Description
Product description
One-stage screw compressor mounted on a horizontal 500 L tank. Available in three pressure variants: 8 / 10 / 13 bar, with flow rates of 2.25 / 2.15 / 2 m³/min. The unit is driven by a 15 kW motor. Connection: G 3/4". Tank-mounted configuration enables compact footprint and orderly installation. Dimensions: 1970 × 760 × 1750 mm. Weight: 429 kg. Noise level: 69 dB(A).
Technical data (table)
Tank (L) | 500
Pressure (bar) | 8 / 10 / 13
Flow (m³/min) | 2.25 / 2.15 / 2
Power (kW) | 15
Connection | G 3/4"
Noise dB(A) | 69
Weight (kg) | 429
Length (mm) | 1970
Width (mm) | 760
Height (mm) | 1750
Key features / technical specifications
One-stage screw compressor mounted on a horizontal 500 L tank. Available in three pressure variants: 8 / 10 / 13 bar, with flow rates of 2.25 / 2.15 / 2 m³/min. The unit is driven by a 15 kW motor. Connection: G 3/4". Tank-mounted configuration enables compact footprint and orderly installation. Dimensions: 1970 × 760 × 1750 mm. Weight: 429 kg. Noise level: 69 dB(A).
Technical data (table)
Tank (L) | 500
Pressure (bar) | 8 / 10 / 13
Flow (m³/min) | 2.25 / 2.15 / 2
Power (kW) | 15
Connection | G 3/4"
Noise dB(A) | 69
Weight (kg) | 429
Length (mm) | 1970
Width (mm) | 760
Height (mm) | 1750
Key features / technical specifications
- Horizontal 500 L tank-mounted configuration
- Working pressure: 8 / 10 / 13 bar
- Flow rates: 2.25 / 2.15 / 2 m³/min
- Motor power: 15 kW
- Connection: G 3/4"
- Noise level: 69 dB(A)
- Dimensions (L × W × H): 1970 × 760 × 1750 mm
- Weight: 429 kg
