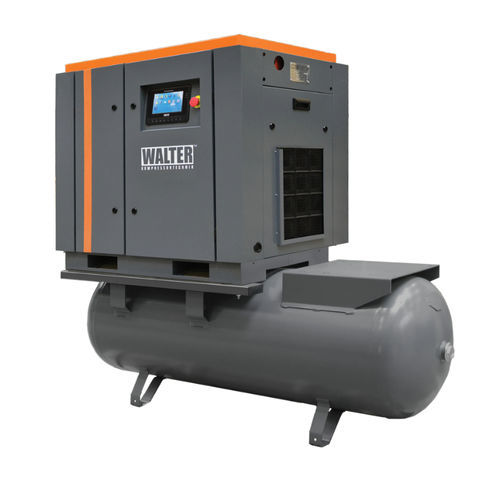

Screw compressor SFTG 15 KSP

airelectric motorstationary

Description
One-stage screw compressor SFTG 15 KSP mounted on a 500 L horizontal tank, designed for compressed air systems with variable demand. Available in three pressure settings – 8 / 10 / 13 bar – and featuring a variable flow range to match operational needs. Driven by a 15 kW motor; connection G 3/4" for straightforward integration into installations.

Features and benefits

• Integrated compressor-and-tank layout – reduced footprint and simplified installation.
• Three operating pressures: 8, 10 or 13 bar – flexible application range.
• Variable capacity adapts to demand, improving efficiency.
• Low noise level: 69 dB(A) – improved working environment.
• Robust design intended for continuous industrial operation.

SFTG 15 KSP – high output and easy operation
The model combines compressor and tank to save space and simplify setup. Dimensions 1970 × 760 × 1750 mm and weight 432 kg provide stable installation. Suited for users seeking a compact, wide-range compressor package with straightforward maintenance and daily usability.

Technical data (table)
Tank (L) : 500
Pressure (bar) : 8 / 10 / 13
Flow (m3/min) : 0.92 - 2.25 / 0.74 - 2.15 / 0.99 - 2.07
Power (kW) : 15
Connection : G 3/4"
Noise (dB(A)) : 69
Weight (kg) : 432
Length (mm) : 1970
Width (mm) : 760
Height (mm) : 1750

Characteristics / technical specifications

• Tank: horizontal, capacity 500 L.
• Available pressure settings: 8 bar, 10 bar, 13 bar.
• Flow ranges (per pressure): 0.92–2.25 m3/min; 0.74–2.15 m3/min; 0.99–2.07 m3/min.
• Drive power: 15 kW.
• Connection: G 3/4".
• Noise level: 69 dB(A).
• Dimensions: 1970 × 760 × 1750 mm.
• Weight: 432 kg.
• Type: one-stage screw compressor integrated with tank.
