Screw compressor SFTG 11 KSP COMBO
airelectricstationary

Screw compressor - SFTG 11 KSP COMBO - Walter Kompressortechnik Polska Sp. z o. o. - air / electric / stationary
Screw compressor - SFTG 11 KSP COMBO - Walter Kompressortechnik Polska Sp. z o. o. - air / electric / stationary
Add to favorites
Compare this product

Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Application domain
industrial
Other characteristics
tank-mounted, with tank, with integrated filtration, with refrigerant dryer, with integrated dryer, horizontal
Tank volume

500 l
(132.1 gal)

Pressure

8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 1.3 m³/min
(45.91 ft³/min)

Min.: 0.67 m³/min
(23.66 ft³/min)

Power

11 kW
(14.96 hp)

Length

1,970 mm
(77.56 in)

Width

760 mm
(29.92 in)

Height

1,750 mm
(68.9 in)

Weight

487 kg
(1,073.7 lb)

Noise level

67 dB

Description

Product description

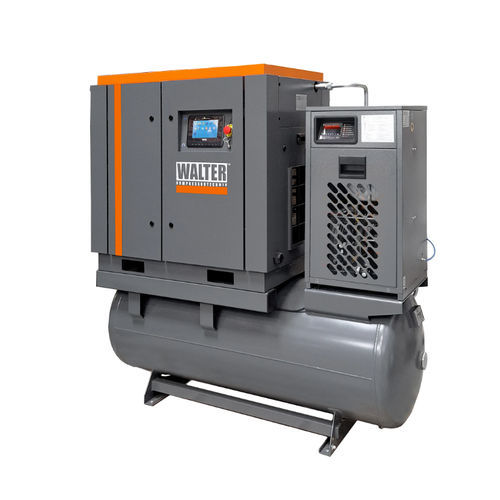

Single-stage screw compressor SFTG 11 KSP COMBO mounted on a horizontal 500 L tank. Integrated with a refrigerated dryer and filtration system, supplied as a complete ready-to-install solution for producing prepared compressed air for industrial applications.

Features and application
  • Integrated assembly of compressor, tank and air treatment components — simplifies installation and reduces footprint
  • Equipped with refrigerated dryer and filtration — delivers treated air suitable for many industrial uses
  • Three working pressure options: 8, 10 or 13 bar — adaptable to installation requirements
  • Low operating noise level: 67 dB(A)
  • Installation connection: G 3/4"

Performance and drive
  • Motor power: 11 kW
  • Flow rate (m³/min) by pressure: 8 bar: 0.67–1.65; 10 bar: 0.58–1.50; 13 bar: 0.74–1.30

Technical data
Tank (L) : 500
Working pressure (bar) : 8 / 10 / 13
Flow rate (m3/min) : 0.67 - 1.65 / 0.58 - 1.50 / 0.74 - 1.30
Power (kW) : 11
Connection : G 3/4"
Noise level (dB(A)) : 67
Weight (kg) : 487
Length (mm) : 1970
Width (mm) : 760
Height (mm) : 1750

Notes
Product supplied as a package with dryer and filters in a single enclosure, intended for industrial applications requiring treated compressed air.

Characteristics / technical specifications
  • Tank: 500 L
  • Working pressure: 8 / 10 / 13 bar
  • Flow rate (m³/min): 0.67–1.65 (8 bar) / 0.58–1.50 (10 bar) / 0.74–1.30 (13 bar)
  • Motor power: 11 kW
  • Connection: G 3/4"
  • Noise level: 67 dB(A)
  • Dimensions (L×W×H): 1970 × 760 × 1750 mm
  • Weight: 487 kg
  • Equipment: refrigerated dryer, filtration system
