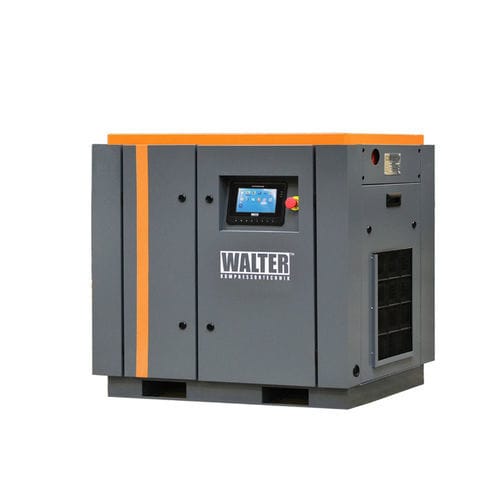

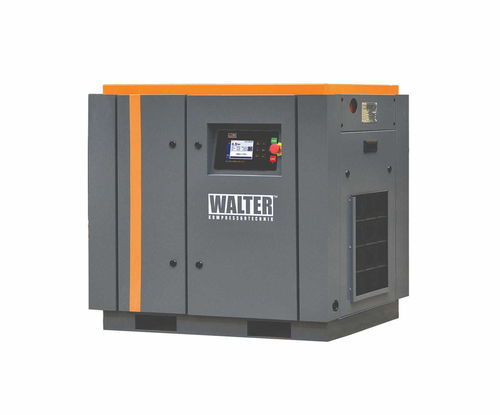

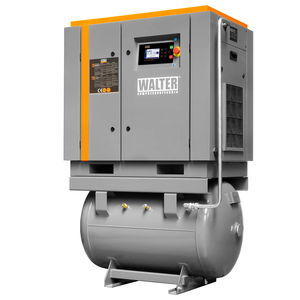

Screw compressor SK 7,5 SP

airelectrically-poweredstationary

General description
The screw compressor SK 7,5 SP is a floor-standing unit designed to produce compressed air for workshops and small industrial installations. It offers three working pressure options — 8 / 10 / 13 bar — and flow rates of 1.15 / 1.0 / 0.85 m³/min, providing a stable supply for pneumatic tools. The unit is driven by a 7.5 kW motor and features a G 3/4" connection for easy integration with existing air systems.

SK 7,5 SP - ergonomics and build quality
The compressor features compact external dimensions (1020 × 720 × 1000 mm) allowing convenient placement on shop floors or in production areas. Noise level is 65 dB(A) and the unit weight is 240 kg.

Technical data (table)
Pressure (bar)
8 / 10 / 13
Flow rate (m³/min)
1.15 / 1.0 / 0.85
Power (kW)
7.5
Connection
G 3/4"
Noise (dB(A))
65
Weight (kg)
240
Length (mm)
1035
Width (mm)
730
Height (mm)
995

Features / technical specifications

• Model: SK 7,5 SP
• Type: floor-standing single-stage screw compressor
• Motor power: 7.5 kW
• Working pressure: 8 / 10 / 13 bar
• Flow rate: 1.15 / 1.0 / 0.85 m³/min
• Connection: G 3/4"
• Noise level: 65 dB(A)
• Weight: 240 kg
• Dimensions (manufacturer): 1020 × 720 × 1000 mm
• Dimensions (table): 1035 × 730 × 995 mm
• Application: workshops and small industrial installations
