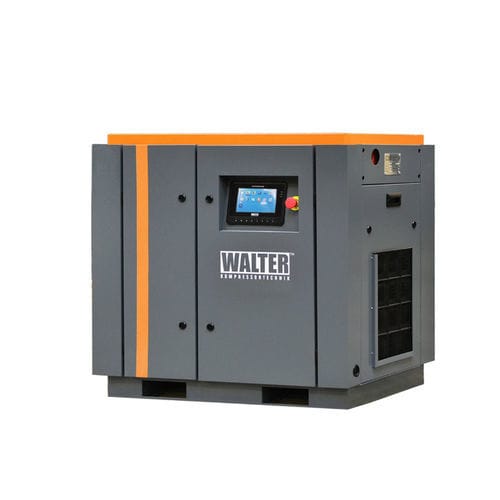

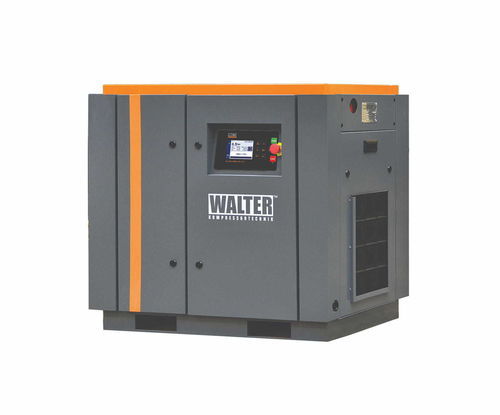

Screw compressor SK 11 KSP

airelectrically-poweredstationary

Overview
The single-stage screw compressor SK 11 KSP is a floorstanding unit designed to supply compressed air for workshops and medium industrial installations. It offers three working pressures — 8, 10 and 13 bar — and flow rates of 1.65 / 1.5 / 1.12 m³/min, ensuring a stable air supply for pneumatic tools and industrial equipment. The unit is driven by an 11 kW motor and features a G 3/4" connection for straightforward integration into compressed-air systems.

SK 11 KSP — compact industrial screw compressor
The compressor features a durable construction and compact external dimensions of 1090 × 730 × 1080 mm, allowing easy placement in workshops or production halls. Its weight of 244 kg provides stability, while a sound level of 67 dB(A) supports a comfortable working environment.

Technical data
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 1.65 / 1.5 / 1.12
Power (kW): 11
Connection: G 3/4"
Sound level dB(A): 67
Weight (kg): 244
Length (mm): 1165
Width (mm): 786
Height (mm): 1061

Characteristics / technical specification

• Type: single-stage screw compressor
• Working pressure levels: 8, 10, 13 bar
• Flow rates: 1.65 / 1.5 / 1.12 m³/min (for 8 / 10 / 13 bar respectively)
• Motor power: 11 kW
• Connection: G 3/4"
• Noise level: 67 dB(A)
• Weight: 244 kg
• External dimensions (in descriptive text): 1090 × 730 × 1080 mm
• Technical table dimensions: length 1165 mm, width 786 mm, height 1061 mm
