Screw compressor SF 15 KSPsingle-screwairelectrically-powered
Add to favorites
Compare this product
Characteristics
- Technology
- screw, single-screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Other characteristics
- compact, single-stage
- Pressure
8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)- Flow
Max.: 2.07 m³/h
(73.1 ft³/h)Min.: 0.92 m³/h
(32.49 ft³/h)- Power
15 kW
(20.39 hp)- Length
1,165 mm
(45.87 in)- Width
786 mm
(30.94 in)- Height
1,061 mm
(41.77 in)- Weight
243 kg
(535.7 lb)- Noise level
69 dB
Description
Description

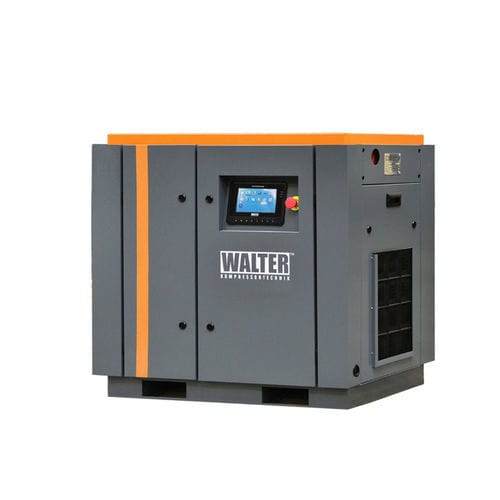

Single-stage screw compressor SF 15 KSP is a freestanding unit designed to supply compressed-air systems with variable demand. Available in three pressure variants — 8 / 10 / 13 bar — and corresponding flow ranges (0.92–2.25 / 0.74–2.15 / 0.99–2.07 m³/min), it allows adjustment of operating parameters to current needs. The unit is driven by a 15 kW motor and features a G 3/4" connection for easy integration.
SF 15 KSP — stable source of compressed air
The model offers a compact, practical design for flexible installation in different work environments. Dimensions of 1165 × 786 × 1061 mm and a weight of 243 kg provide stable placement. Sound level of 69 dB(A) supports comfortable daily operation.
Technical data:
Single-stage screw compressor SF 15 KSP is a freestanding unit designed to supply compressed-air systems with variable demand. Available in three pressure variants — 8 / 10 / 13 bar — and corresponding flow ranges (0.92–2.25 / 0.74–2.15 / 0.99–2.07 m³/min), it allows adjustment of operating parameters to current needs. The unit is driven by a 15 kW motor and features a G 3/4" connection for easy integration.
SF 15 KSP — stable source of compressed air
The model offers a compact, practical design for flexible installation in different work environments. Dimensions of 1165 × 786 × 1061 mm and a weight of 243 kg provide stable placement. Sound level of 69 dB(A) supports comfortable daily operation.
Technical data:
- Model: SF 15 KSP
- Type: single-stage screw compressor (freestanding)
- Power: 15 kW
- Pressure range: 8 / 10 / 13 bar
- Flow (by pressure): 0.92–2.25 / 0.74–2.15 / 0.99–2.07 m³/min
- Connection: G 3/4"
- Noise level: 69 dB(A)
- Dimensions (L × W × H): 1165 × 786 × 1061 mm
- Weight: 243 kg
