Screw compressor SKTG 7,5 SPairpneumaticstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- pneumatic
- Portability
- stationary
- Application domain
- industrial
- Applications
- motor, for tanks
- Other characteristics
- compact, tank-mounted, with tank, horizontal
- Tank volume
270 l
(71.3 gal)- Pressure
8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)- Flow
0.85 m³/min, 1 m³/min, 1.15 m³/min
(30.02 ft³/min, 35.31 ft³/min, 40.61 ft³/min)- Power
7.5 kW
(10.2 hp)- Length
1,120 mm
(44.09 in)- Width
720 mm
(28.35 in)- Height
1,710 mm
(67.32 in)- Weight
320 kg
(705.5 lb)- Noise level
65 dB
Description
Overview

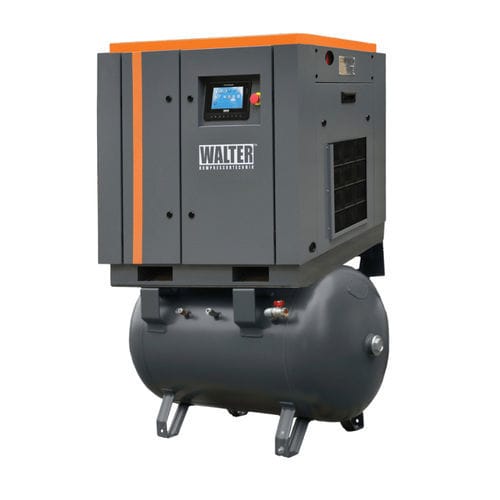

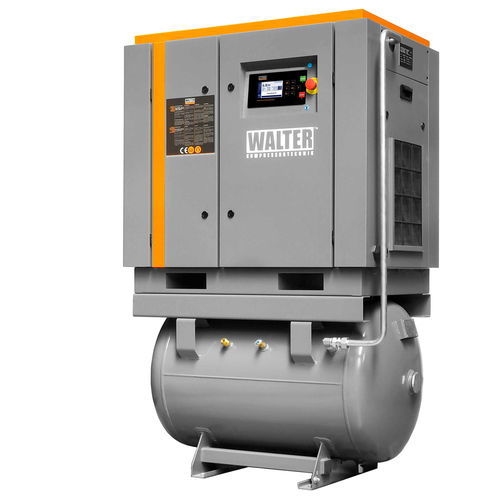

Screw compressor SKTG 7,5 SP is a unit mounted on a horizontal 270 L tank, designed to supply compressed air for workshops and small industrial installations. It offers three pressure settings: 8, 10 and 13 bar, with flows of 1.15 / 1 / 0.85 m³/min. Driven by a 7.5 kW motor. Connection G 3/4" simplifies integration with existing air systems.
SKTG 7,5 SP — compact screw compressor with tank
The unit features a compact, well-engineered design suitable for placement in workshops or production halls. Dimensions 1120 × 720 × 1710 mm and weight 320 kg provide stability and safe operation. Noise level 65 dB(A) ensures comfortable working conditions.
Technical data
Screw compressor SKTG 7,5 SP is a unit mounted on a horizontal 270 L tank, designed to supply compressed air for workshops and small industrial installations. It offers three pressure settings: 8, 10 and 13 bar, with flows of 1.15 / 1 / 0.85 m³/min. Driven by a 7.5 kW motor. Connection G 3/4" simplifies integration with existing air systems.
SKTG 7,5 SP — compact screw compressor with tank
The unit features a compact, well-engineered design suitable for placement in workshops or production halls. Dimensions 1120 × 720 × 1710 mm and weight 320 kg provide stability and safe operation. Noise level 65 dB(A) ensures comfortable working conditions.
Technical data
- Tank: 270 L
- Pressure: 8 / 10 / 13 bar
- Flow: 1.15 / 1 / 0.85 m³/min
- Motor power: 7.5 kW
- Connection: G 3/4"
- Noise level: 65 dB(A)
- Weight: 320 kg
- Dimensions (L × W × H): 1120 × 720 × 1710 mm
