Screw compressor SFTG 5.5 KSP
airpneumaticstationary

Screw compressor - SFTG 5.5 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / pneumatic / stationary
Screw compressor - SFTG 5.5 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / pneumatic / stationary
Add to favorites
Compare this product

Characteristics

Technology
screw
Type
air
Power source
pneumatic
Portability
stationary
Application domain
industrial
Other characteristics
with tank, single-stage, horizontal
Tank volume

500 l
(132.1 gal)

Pressure

8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 0.64 m³/min
(22.6 ft³/min)

Min.: 0.42 m³/min
(14.83 ft³/min)

Power

5.5 kW
(7.48 hp)

Length

1,970 mm
(77.56 in)

Width

720 mm
(28.35 in)

Height

1,700 mm
(66.93 in)

Weight

363 kg
(800.3 lb)

Noise level

60 dB

Description

Overview

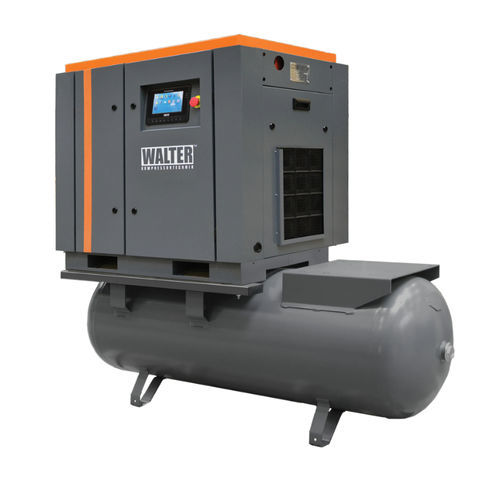

One-stage screw compressor SFTG 5.5 KSP mounted on a horizontal 500 L receiver, designed for compressed air systems with variable demand. Available in three pressure variants: 8 / 10 / 13 bar. Performance ranges: 0.42 - 0.95 m³/min; 0.36 - 0.8 m³/min; 0.36 - 0.64 m³/min (depending on variant). Equipped with a 5.5 kW motor and G 3/4" connection.

Design features
The model features an integrated receiver construction to reduce footprint and simplify installation. Dimensions: 1970 × 720 × 1700 mm; weight: 363 kg. Noise level: 60 dB(A).

Applications
Suitable solution for workshops and small plants requiring a compact unit combining compressor and receiver in a single assembly; typical uses include pneumatic tools, general maintenance and light production tasks.

Technical data (source table)
Tank (L): 500
Pressure (bar): 8 / 10 / 13
Capacity (m³/min): 0.42 - 0.95 / 0.36 - 0.8 / 0.36 - 0.64
Power (kW): 5.5
Connection: G 3/4"
Noise dB(A): 60
Weight (kg): 363
Length (mm): 1970
Width (mm): 720
Height (mm): 1700

Key specifications
  • Tank: 500 L
  • Pressure: 8 / 10 / 13 bar
  • Capacity (m³/min): 0.42 - 0.95 / 0.36 - 0.8 / 0.36 - 0.64
  • Motor power: 5.5 kW
  • Connection: G 3/4"
  • Noise level: 60 dB(A)
  • Weight: 363 kg
  • Dimensions (L×W×H): 1970 × 720 × 1700 mm
