Screw compressor SF 7,5 KSP
airelectricstationary

Screw compressor - SF 7,5 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / electric / stationary
Screw compressor - SF 7,5 KSP - Walter Kompressortechnik Polska Sp. z o. o. - air / electric / stationary
Add to favorites
Compare this product

Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Application domain
industrial
Other characteristics
single-stage
Pressure

8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 0.95 m³/min
(33.55 ft³/min)

Min.: 0.42 m³/min
(14.83 ft³/min)

Power

7.5 kW
(10.2 hp)

Length

1,035 mm
(40.75 in)

Width

730 mm
(28.74 in)

Height

995 mm
(39.17 in)

Weight

227 kg
(500.4 lb)

Noise level

65 dB

Description

Product overview

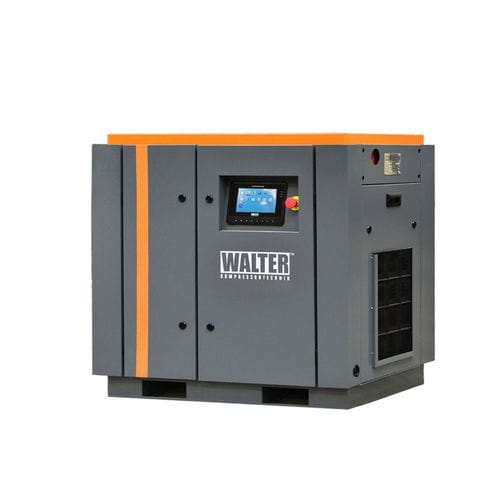

Single-stage screw compressor SF 7,5 KSP is a floor-standing unit designed to supply compressed air to installations with variable demand. Available in three pressure variants: 8 / 10 / 13 bar. Flow ranges depending on pressure: 0.42–1.15 m³/min (at 8 bar) / 0.36–1.00 m³/min (at 10 bar) / 0.43–0.95 m³/min (at 13 bar). The compressor is equipped with a 7.5 kW motor and a G 3/4" connection for system integration.

Compact footprint and installation
The model's compact dimensions facilitate installation in confined spaces. Dimensions and weight provide stable positioning and ease of maintenance. The sound level (65 dB(A)) supports comfortable operation in daily use.

Technical data:
  • Type: single-stage screw compressor
  • Motor power: 7.5 kW
  • Pressure variants: 8 / 10 / 13 bar
  • Flow ranges (by pressure): 0.36–1.15 m³/min
  • Connection: G 3/4"
  • Sound level: 65 dB(A)
  • Weight: 227 kg
  • Dimensions (L×W×H): 1035 × 730 × 995 mm
