Screw compressor SFTG 15 KSP COMBO

airelectricstationary

Description

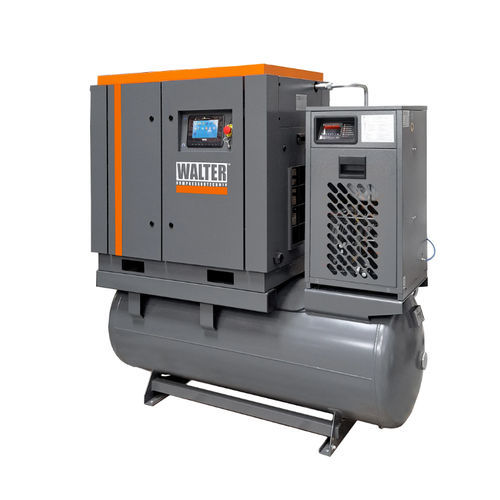

Single-stage screw compressor SFTG 15 KSP COMBO mounted on a horizontal 500 L tank, equipped with an integrated refrigerated dryer and a filter system to deliver compressed air with specified quality parameters in a single unit. Powered by a 15 kW motor with connection G 3/4".

SFTG 15 KSP COMBO - integrated compressor set
The model combines compressor, tank and air treatment units in one enclosure, simplifying installation and reducing footprint. Dimensions: 1970 × 720 × 1750 mm, weight 492 kg, noise level 69 dB(A). Operates at three pressure settings (8 / 10 / 13 bar) and provides staged flow performance to match operational needs.

Technical data (table)
Tank (L) : 500
Pressure (bar) : 8 / 10 / 13
Flow (m3/min) : 0.92 - 2.25 / 0.74 - 2.15 / 0.99 - 2.07
Motor power (kW) : 15
Connection : G 3/4"
Noise dB(A) : 69
Weight (kg) : 492
Length (mm) : 1970
Width (mm) : 720
Height (mm) : 1750

Equipment and features

• Integrated refrigerated dryer
• Air filter system
• Mounted on 500 L tank
• Three pressure options: 8 / 10 / 13 bar
• Staged flow range to suit demand
• Connection G 3/4"

Characteristics / technical specifications

• Tank: 500 L
• Operating pressure: 8 / 10 / 13 bar
• Flow: 0.92 - 2.25 / 0.74 - 2.15 / 0.99 - 2.07 m3/min
• Motor power: 15 kW
• Connection: G 3/4"
• Noise level: 69 dB(A)
• Weight: 492 kg
• Dimensions (L × W × H): 1970 × 720 × 1750 mm
• Integrated refrigerated dryer and filter system
