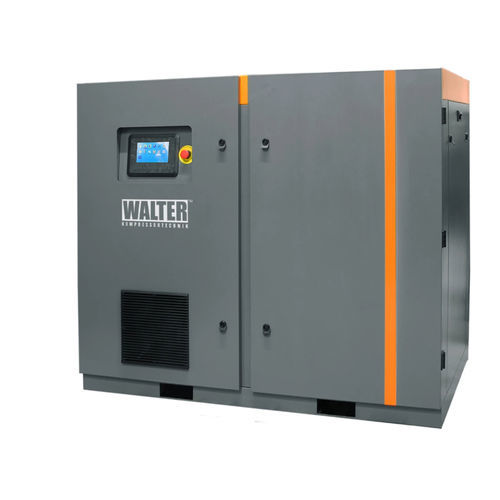

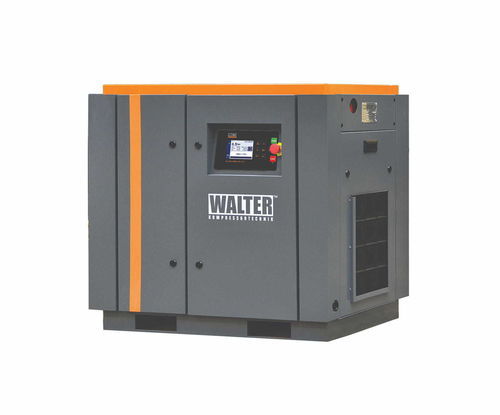

Screw compressor SK 15 KSPairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Application domain
- industrial
- Other characteristics
- compact, single-stage
- Pressure
Max.: 13 bar
(188.55 psi)Min.: 8 bar
(116.03 psi)- Flow
Max.: 135 m³/h
(4,767.48 ft³/h)Min.: 120 m³/h
(4,237.76 ft³/h)- Power
15 kW
(20.39 hp)- Length
Max.: 1,165 mm
(45.87 in)Min.: 1,090 mm
(42.91 in)- Width
Max.: 786 mm
(30.94 in)Min.: 730 mm
(28.74 in)- Height
Max.: 1,080 mm
(42.52 in)Min.: 1,061 mm
(41.77 in)- Weight
244 kg
(537.9 lb)- Noise level
69 dB
Description
Overview
The SK 15 KSP is a one-stage screw compressor designed for workshops and medium industrial installations. It provides three working pressure levels (8, 10 and 13 bar) with nominal flows of 2.25 / 2.15 / 2 m³/min. The unit is driven by a 15 kW motor and features a G 3/4" connection.
Design and dimensions
Compact footprint and sturdy construction intended for industrial environments. Listed compact dimensions and technical-table dimensions differ as shown below.
Technical data
Applications
The SK 15 KSP is a one-stage screw compressor designed for workshops and medium industrial installations. It provides three working pressure levels (8, 10 and 13 bar) with nominal flows of 2.25 / 2.15 / 2 m³/min. The unit is driven by a 15 kW motor and features a G 3/4" connection.
Design and dimensions
Compact footprint and sturdy construction intended for industrial environments. Listed compact dimensions and technical-table dimensions differ as shown below.
- Compact dimensions: 1090 × 730 × 1080 mm
- Technical-table dimensions: length 1165 mm, width 786 mm, height 1061 mm
- Weight: 244 kg
- Noise level: 69 dB(A)
Technical data
- Type: one-stage screw compressor
- Operating pressures: 8 / 10 / 13 bar
- Nominal flow: 2.25 / 2.15 / 2 m³/min
- Motor power: 15 kW
- Connection: G 3/4"
- Noise: 69 dB(A)
- Weight: 244 kg
- Dimensions (compact): 1090 × 730 × 1080 mm
- Dimensions (table): L 1165 × W 786 × H 1061 mm
Applications
- Workshop compressed-air supply
- Medium-sized industrial installations
