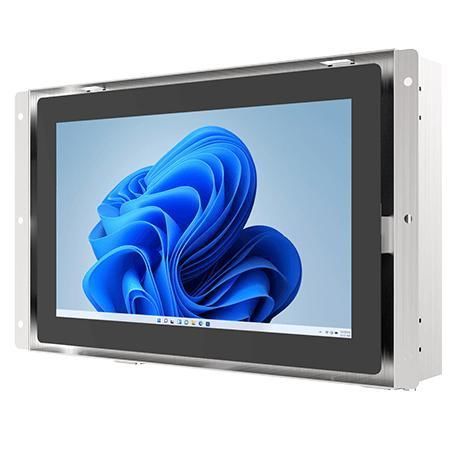

Multitouch screen panel PC W07IAN3S-POT1

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07IAN3S-POT1 is a 7" PO Series HMI Panel PC engineered for machine control, factory automation and operator HMI environments. It integrates Intel® Alder Lake‑N processors (N100 default, N150 optional), a 7" SVGA display and projected capacitive multi-touch in a slim open‑frame metal housing for industrial embedded deployments.

Key Features

• 7.0" SVGA TFT LCD (1024 x 600) with PCAP multi-touch
• Intel® Alder Lake‑N processor options (N100 default, N150 optional)
• 1 x SO‑DIMM DDR5‑4800, up to 16GB
• Dual Intel® 2.5 Gigabit Ethernet controllers
• Rich I/O: HDMI (optional), USB3.2 Gen2 Type‑C (DP‑Alt), USB Type‑A, USB2.0, multiple COM ports
• Slim open‑frame metal enclosure and fanless design

Certifications

• CE
• FCC

Product Highlights
The PO Series HMI Panel PC balances compact footprint and scalable performance for precise control, real‑time data handling and smooth graphics. Its flexible I/O and expansion options facilitate integration with PLCs, field devices and embedded systems.

Design & Integration
Fanless metal housing with open‑frame mounting (panel and VESA mounting optional). TPM 2.0 security and long lifecycle support simplify deployment in industrial, kiosk and OEM applications.

Technical specifications

• Display: 7.0 inches SVGA TFT LCD, 1024 x 600, 320 nits, contrast 1000:1, view angles 75/75/75/70, active area 153.6 x 90 mm
• Touch: Projected Capacitive Multi Touch (PCAP)
• Processor: Intel® N100 (6M Cache, up to 3.40 GHz) default; Intel® N150 (6M Cache, up to 3.60 GHz) optional
• Memory: 4GB default; optional 8GB/16GB (1 x SO‑DIMM DDR5‑4800, max 16GB)
• Storage: 128GB SSD default; optional 256/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (only when NVMe not present)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64‑bit, Windows 11 Pro 64‑bit, Linux Ubuntu 24.04 (Wake on Touch not supported on Ubuntu)
• Wireless: Optional (M.2 2230 E‑Key slot for Wi‑Fi module)
• USB / I/O: 1 x USB3.2 Gen2 Type‑C (DP Alt mode), 2 x USB3.2 Gen1 Type‑A, additional USB2.0 ports, 1 x HDMI 2.0b (optional), 4 x COM (config dependent)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2230 E‑Key slot
• Indicators: LED for power and storage
• Power: 1 x 12V DC (2.5φ DC jack); adapter 12V 50W (included accessory)
• Dimensions & Weight: 208 x 126 x 46 mm; approx. 1.2 kg
• Mounting: Open frame default; panel mount and VESA mount optional
• Enclosure: Metal housing; cooling: fanless
• Environment: Operating humidity 10%–90% RH non‑condensing; operating temp 0°C to 50°C; storage temp -10°C to 60°C
