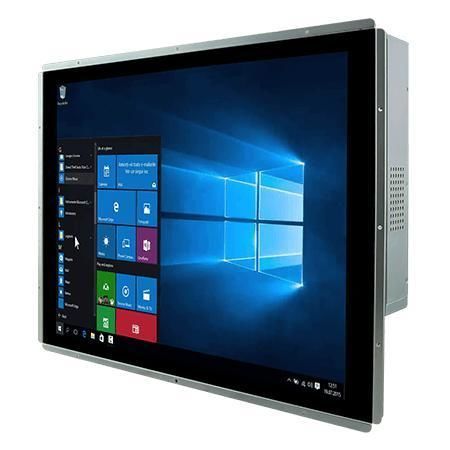

Multitouch screen panel PC R19IP7T-POM1

PCAP capacitive touch screen19"1280 x 1024

Overview
The Winmate R19IP7T-POM1 is a 19-inch PO Series HMI Panel PC for machine control, factory automation and operator interfaces. It integrates an Intel® Pentium® N4200 (Apollo Lake) processor in a fanless design, a slim open-frame housing for compact installations, a projected capacitive (PCAP) multi-touch display and rugged I/O with a front IP65 rating — suitable for kiosk and embedded industrial applications requiring long lifecycle hardware and reliable field operation.

Key Features

• 19-inch display, 1280 x 1024, 250 nits
• Intel® Pentium® N4200 (1.10 GHz, up to 2.5 GHz)
• Slim open-frame housing with flat bezel
• Projected Capacitive (PCAP) multi-touch
• 12 V DC IN via Din4 power connector
• Rich I/O for industrial connectivity (serial, USB, LAN, video, audio)

Highlights
The PO Series combines a low-profile open-frame for easy mounting in confined spaces, fanless operation for silent, maintenance-free use, TPM 2.0 security support and flexible storage/expansion (M.2, SATA, PCIe). Target verticals include industrial automation, banking, healthcare, retail and transportation where dependable continuous operation is required.

Certifications

• CE
• FCC

Technical Specifications

• Model: R19IP7T-POM1; Brand: Winmate
• Display — Size: 19.0 inches; Resolution: 1280 x 1024; Brightness: 250 nits; Contrast: 1000:1; View angles: 85/85/80/80; Active area: 376.32 x 301.06 mm
• Touch/Glass: Projected Capacitive Multi Touch (PCAP)
• Processor: Intel Pentium N4200 1.1 GHz (burst up to 2.5 GHz)
• Memory: Dual-channel (non-ECC) SO-DIMM, up to 16 GB
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB; optional 2 x SATA III for 2.5" SSD/HDD (RAID optional)
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• Security: TPM 2.0
• OS (optional): Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 20.04
• WLAN / Bluetooth: Optional (M.2 2230 E-key)
• Dimensions: 457 x 382 x 61.5 mm; Weight: 4.8 kg
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless design
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C; Front IP65
• I/O Ports: 4 x USB 3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x RJ45; Video: 1 x DisplayPort 1.2 (default), optional HDMI 1.4, optional VGA; Audio: Mic in, Line out, 2 x Speaker
• Expansion: 1 x M.2 2242 B-key (SATA III SSD); 1 x M.2 2230 E-key (Wi-Fi); 1 x PCIe 2.0 x1
• Indicators & Controls: Power LED, Storage LED, Brightness adjustment knob, Power and Reset buttons
• Power: 1 x 12V DC input (Din4); Adapter example: 12V 84W; Accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Certifications: CE, FCC
