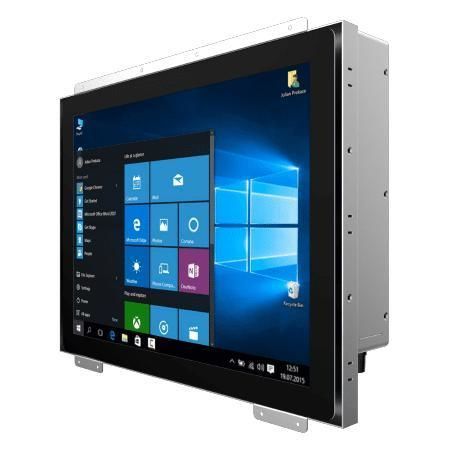

Multi-touch screen panel PC R15IT7T-POC3

PCAP capacitive touch screen15"1024 x 768

Overview
Winmate R15IT7T-POC3 is a 15.0-inch HMI Panel PC powered by Intel® Core™ Tiger Lake UP3 i5 processors (i5-1135G7 without vPro or i5-1145G7E with vPro). It is designed for machine control, factory automation and operator HMI applications, providing long lifecycle availability, fanless operation and a front IP65 protection rating for industrial environments.

Key features

• Intel® Core™ Tiger Lake UP3: i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 15.0" HMI panel, 1024 × 768 resolution with projected capacitive multi-touch (PCAP)
• Multi-display support via DP / HDMI / LVDS / eDP
• Rich I/O: serial ports, 4 × USB 3.2 Gen2x1, dual LAN (1G + 2.5G), audio
• Front panel protection IP65 (water and dust resistant)
• 12V single-voltage DC input; fanless metal housing

Convenient Onscreen Operations with PCAP Multi-Touch
Projected capacitive multi-touch enables responsive and accurate operator interactions for HMI tasks, supporting multi-touch gestures and reliable performance in production and control rooms.

Suitable for Condensed Spaces
Open-frame design with a flat bezel simplifies integration into embedded, kiosk and panel-mount applications where space is limited, while VESA and panel-mount options provide installation flexibility.

Rich I/O Interface for IoT Connectivity
Comprehensive I/O supports industrial IoT and peripheral integration: serial (RS232/422/485), multiple USB ports, dual Ethernet (1 Gb + 2.5 Gb), DP/HDMI video, audio in/out, M.2 slots for NVMe and Wi‑Fi modules, and a PCIe expansion slot.

Certifications

• CE
• FCC

Technical specifications

• Model: R15IT7T-POC3
• Display: 15.0 inches, projected capacitive multi-touch (PCAP)
• Resolution: 1024 × 768
• Brightness: 300 nits
• Contrast ratio: 2000:1
• Viewing angles: 88/88/88/88
• Active area: 304.1 × 228.1 mm
• Processor: Intel Core i5-1135G7 (2.4 GHz up to 4.2 GHz); option i5-1145G7E with vPro
• Memory: 2 × non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 × SATA III for 2.5" drive (optional); 1 × M.2 2280 M-Key (NVMe)
• Ethernet: 1 × Gigabit RJ45 + 1 × 2.5 Gigabit RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• Wireless: optional M.2 2230 E-Key Wi‑Fi / Bluetooth
• Dimensions: 360 × 294.8 × 63 mm; Weight: 4.1 kg
• Mounting: Open frame (standard); panel mount and VESA mount optional
• Enclosure: metal housing; fanless design
• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• Front protection: IP65
• I/O ports: 4 × USB 3.2 Gen2x1 Type-A; Serial: 1 × RS232/422/485 (default RS232) + 1 × RS232; LAN: 1 × Gigabit RJ45 + 1 × 2.5 Gigabit RJ45; Video: 1 × DP 1.4 (default), HDMI 2.0 optional; Audio: Mic in, Line out
• Expansion: 1 × M.2 2280 M-Key (NVMe); 1 × M.2 2230 E-Key (Wi‑Fi); 1 × PCIe 4.0 x16 slot (x4 signal)
• Indicators & controls: Power LED, Storage LED, brightness adjustment knob, Power and Reset buttons
• Power input: 1 × 12V DC Din4-pin connector; Adapter: 12V 120W (included/optional)
• Accessories: 100–240V AC to DC adapter, power cord, VESA screws (depending on configuration)
