Multitouch screen panel PC R15IF7T-POC3

PCAP capacitive touch screen15"1024 x 768

Overview

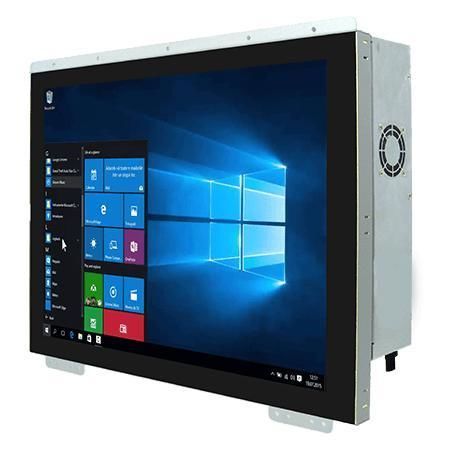

Winmate R15IF7T-POC3 is a 15-inch HMI panel PC for industrial machine control, factory automation and operator HMI applications. It integrates a 15" XGA (1024 x 768) projected capacitive multi-touch display, Intel® 9th Generation Core™ processors (i3/i5/i7), flexible storage options and multiple I/O for industrial connectivity. The unit is offered in open-frame configuration with optional panel or VESA mounting and comes in a metal housing with fan cooling. CE and FCC certifications are provided.

Key features

• 15" XGA (1024 x 768) HMI panel with projected capacitive (PCAP) multi-touch
• Intel® 9th Generation Core™ processors: i3 / i5 / i7 (configurable)
• Flexible storage: M.2 NVMe/SATA and 2.5" SSD/HDD support, optional RAID 0/1
• Rich I/O: 2 x Gigabit LAN, 2 x serial ports (RS232/422/485), 4 x USB 3.2 Gen1 Type-A
• 12 V DC input (lockable Din4) and optional 12V 120W adapter
• External display support: DP 4096 x 2304 @ 60 Hz, HDMI 4096 x 2304 @ 24 Hz (optional)

Product highlights / descriptions
The PO series provides a flat-bezel open-frame housing suitable for industrial embedded systems and kiosks. The PCAP multi-touch screen enables precise onscreen operation. The platform targets vertical markets including industrial automation, transportation, retail, banking and healthcare. Connectivity and expansion options (M.2 slots, PCIe, serial, USB, LAN, audio) support IoT integration and long-term maintainability. TPM 2.0 and optional wireless modules are available for security and connectivity.

Certifications
CE, FCC

Technical specifications

• Model: R15IF7T-POC3
• Display: 15.0 inches, Resolution 1024 x 768 (XGA), Brightness 300 nits, Contrast 2000:1, Active area 304.1 x 228.1 mm, Viewing angles 88/88/88/88
• Touch / Glass: Projected capacitive multi-touch
• Processor (default / options): Intel® Core™ i7-9700TE (1.8 GHz up to 3.8 GHz) default; optional i5-9500TE, i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256/512 GB /1 TB /2 TB; M.2 2280 M-Key NVMe/SATA, M.2 2242 B-Key, 2 x SATA III for 2.5" SSD/HDD (RAID 0/1 optional)
• Ethernet: 2 x Intel® Gigabit LAN
• Security: TPM 2.0
• Operating System: Windows 10 IoT Enterprise (64-bit) or Linux (Ubuntu options)
• Wireless: WLAN / Bluetooth optional via M.2 E-Key
• Expansion: 1 x M.2 2280/2242 M-Key, 1 x M.2 2230 E-Key, 1 x PCIe 3.0 x16 (optional)
• I/O Ports: 4 x USB 3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 (configurable, default RS232) + 1 x RS232; LAN: 2 x RJ45; Video: 1 x DP1.2 (default), 1 x HDMI 1.4 (optional); Audio: Mic in, Line out, 2 x Speaker
• Indicators & Controls: LED power, LED storage, brightness adjustment knob, power and reset buttons
• Mechanical: Dimensions 360 x 293 x 63 mm; Weight ~4.1 kg; Metal housing; Cooling: fan design; Mounting: Open frame (default), Panel mount (optional), VESA mount (optional)
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C
• Power: 1 x 12V DC (Din4 lockable power jack); adapter option 12V 120W; accessories: AC to DC adapter, power cord, VESA screws, drivers/manual
• Certifications: CE, FCC
