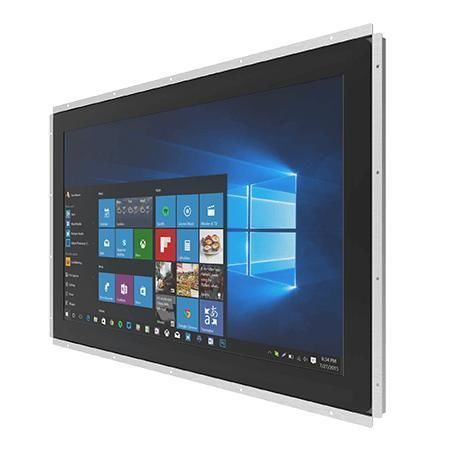

Multitouch screen panel PC W24IT7T-POA2

LCDPCAP capacitive touch screen23.8"

Overview
The W24IT7T-POA2 is a 24 in PO Series HMI Panel PC powered by Intel® Core™ i5 (Tiger Lake) processors. It is engineered for machine control, factory automation and operator HMI installations, offering front IP65 protection, fanless cooling, a projected capacitive multi-touch display and multiple industrial I/O for integration with sensors and peripherals.

Key Features

• Intel® Core™ Tiger Lake UP3: i5-1135G7 (no vPro) or i5-1145G7E (with vPro)
• 23.8 in FHD display (1920 x 1080) with projected capacitive (PCAP) multi-touch
• Multi-display support via DP / HDMI / LVDS / eDP panel interfaces
• Multiple I/O: serial ports, USB 3.2 Gen, dual LAN (1G + 2.5G), audio
• Front panel rated IP65 for water and dust protection
• 12V DC single-voltage power input; fanless thermal design

Product Highlights

• Responsive PCAP multi-touch for precise onscreen operations in industrial HMI contexts.
• Open-frame / panel / VESA mounting options enable flexible integration into embedded and kiosk systems.
• Extensive I/O and expansion (M.2 NVMe, M.2 Wi‑Fi, PCIe slot) for IoT connectivity and peripheral interfacing.
• Suitable for OEMs and system integrators requiring long-lifecycle industrial computing platforms.

Technical Specifications

• Display: Size — 23.8 in; Touch / Glass — Projected Capacitive Multi-Touch (PCAP); Resolution — 1920 x 1080; Brightness — 250 nits; Contrast Ratio — 3000:1; View Angles — 89/89/89/89; Active Area — 527.04 x 296.46 mm
• System: Processor — Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz) or i5-1145G7E; Memory — 1 x SO-DIMM DDR4 3200 MHz (4GB default), optional up to dual SO-DIMM support to 64GB; Storage — 1 x M.2 2280 NVMe SSD 128GB default (options to 2TB) + 1 x SATA III for 2.5" SSD/HDD up to 2TB; Ethernet — dual Intel controllers; Security — TPM 2.0; OS — Windows 11 IoT Enterprise/Windows 11 Pro/Linux Ubuntu 22.04 (Linux: Wake on Touch not supported)
• Mechanical: Dimensions — 615 x 385 x 69 mm; Weight — 6.3 kg; Mounting — Open Frame, Panel Mount, VESA; Enclosure — Metal; Cooling — Fanless
• Environment: Operating Humidity — 10% to 90% RH non-condensing; Operating Temp — 0°C to 50°C; Storage Temp — -10°C to 60°C
• Certifications: CE, FCC
• I/O Ports: USB — 4 x USB 3.2 Gen2x1 (Type-A); Serial — 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN — 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45; Video — 1 x DP1.4 (default) + 1 x HDMI 2.0 (optional); Audio — Mic in, Line out; Expansion — 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16) slot (x4 signal); Indicators — power and storage LEDs; Brightness — adjustment knob; Power Input — 12V DC Din4 pin
• Control & Accessories: Buttons — Power, Reset; Included/optional — 100~240V AC to DC adapter, power cord, VESA screws; Power Rating — 12V DC (adapter example 12V 120W)
