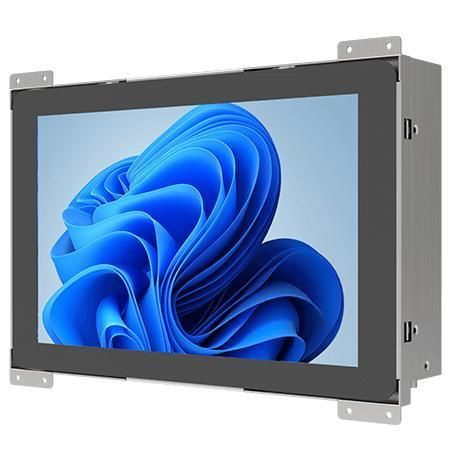

Multitouch screen panel PC W10IAN3S-POA1

LCDPCAP capacitive touch screen10.1"

Overview
The Winmate W10IAN3S-POA1 is a 10.1-inch PO Series HMI Panel PC designed for machine control, factory automation and operator HMI applications. It integrates an Intel® Alder Lake-N processor (N100 default, N150 optional), a 1920×1200 WXGA display with projected capacitive multi-touch and a slim open-frame metal housing for embedded and kiosk installations.

Key Features

• 10.1" WXGA TFT with projected capacitive (PCAP) multi-touch
• Intel® Alder Lake-N processors: N100 (default) or N150 (optional)
• SO-DIMM DDR5-4800 single slot, up to 16GB
• Dual Intel® 2.5 Gigabit Ethernet ports (RJ45)
• Multiple I/O: HDMI (optional), USB 3.2 Gen2 Type-C (DP-Alt), USB 3.2 Gen1 Type-A, USB 2.0, COM ports
• Fanless operation and metal enclosure for industrial environments

Certifications

• CE
• FCC

System & Connectivity Highlights

• Processor options: N100 (6M cache, up to 3.40 GHz) default; N150 (6M cache, up to 3.60 GHz) optional
• Memory: 4GB default; configurable to 8GB or 16GB (SO-DIMM DDR5-4800)
• Storage: 128GB NVMe SSD default; optional 256GB–4TB; 1×SATA III for 2.5" drive (if NVMe not present)
• USB: 2×USB 3.2 Gen1 Type-A, 1×USB 3.2 Gen2 Type-C (DP-Alt), 4×USB 2.0
• Serial: 1×RS232/422/485 (default RS232) + 1×RS232
• Video: 1×HDMI 2.0b (optional); Audio: 2×speaker
• Security: TPM 2.0; Wireless: optional via M.2 2230 E-Key
• Indicators: power and storage LEDs; Power input: 12V DC (adapter typically 12V 50W)

Mechanical

• Dimensions: 264 × 190 × 48 mm
• Weight: 1.3 kg
• Mounting: open-frame (default); panel mount and VESA optional
• Enclosure: metal housing; Cooling: fanless

Display

• Size: 10.1 inches
• Resolution: 1920 × 1200 (WXGA)
• Touch: projected capacitive multi-touch (PCAP)
• Brightness: 700 nits; Contrast: 800:1; View angles: 89/89/89/89
• Active area: 216.576 × 135.36 mm

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: −10°C to 60°C

Accessories

• 100–240V AC to 12V DC adapter (typical)
• Power cord
• VESA screws

Technical Specifications

• Model: W10IAN3S-POA1
• Processor: Intel® N100 (default) / N150 (optional)
• Memory: SO-DIMM DDR5-4800 up to 16GB
• Storage: 128GB–4TB NVMe/SSD; optional SATA III for 2.5" drive
• LAN: 2×2.5 Gigabit Ethernet
• USB & I/O: Type-C (DP-Alt), USB 3.x, USB 2.0, HDMI (opt), COM ports
• Display: 10.1" WXGA 1920×1200, 700 nits, PCAP touch
• Mounting: open-frame / panel / VESA
• Dimensions / Weight: 264 × 190 × 48 mm / 1.3 kg
• Power: 12V DC (adapter 12V 50W)
• Certifications: CE, FCC
