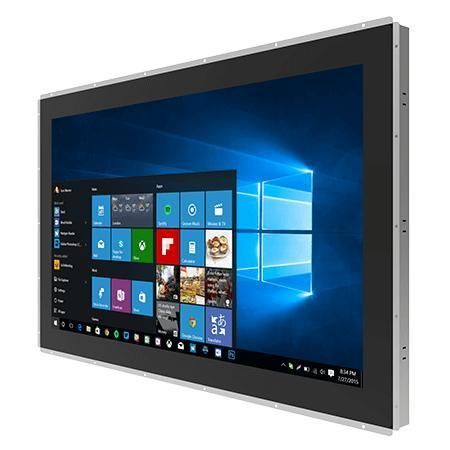

Multitouch screen panel PC W27IAD7T-POA1

PCAP capacitive touch screen27"1920 x 1080

Overview
The Winmate W27IAD7T-POA1 is a 27-inch PO Series HMI Panel PC for machine control, factory automation and operator HMI. It supports 12th/14th Gen Intel® Core™ Alder Lake / Raptor Lake processors with LGA 1700 socket options, a 1920 x 1080 projected capacitive multi-touch display, multiple display interfaces and industrial I/O. The front bezel is IP65-rated for water and dust protection.

Key features

• 12th/14th Gen Intel® Core™ Alder Lake / Raptor Lake S Socket LGA 1700 processors (i3/i5/i7/i9 variants)
• 1920 x 1080 resolution, 27.0" display
• Projected capacitive multi-touch screen (P-CAP)
• Multi-display support: HDMI / LVDS / eDP
• Multiple I/Os: serial ports, 4 x USB 3.2 Gen2x1, dual 2.5G LAN
• Front IP65 water and dust proof
• 12V single-voltage power input

Multi-Display Support
Equipped with HDMI, LVDS and eDP panel interfaces to connect external monitors and provide flexible visualization options for industrial applications.

Multiple I/O Ports
Includes legacy serial connectivity and high-speed USB ports to interface with PLCs, sensors and industrial peripherals.

Power Input
Supports 12V DC single-voltage input for straightforward integration into industrial power systems.

Certifications
CE and FCC compliant.

Technical specifications

• Model: W27IAD7T-POA1
• Brand: Winmate
• Display - Size: 27.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1920 x 1080
• Display - Panel Brightness: 300 nits
• Display - Contrast Ratio: 3000:1
• Display - View Angles: 89/89/89/89
• Display - Active Area: 597.6 x 336.15 mm
• System - Processor: Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; optional 14th Gen options (i3-14100T, i5-14500T, i7-14700T, i9-14900T)
• System - Chipset: Intel® R680E
• System - Memory: 2 x SO-DIMM DDR5 4800 MHz; 8GB default; options: 16GB, 32GB, 64GB
• System - Storage: 1 x M.2 2280 M-Key NVMe SSD 256GB (default); options: 512GB, 1TB, 2TB; optional 2 x SATA III for 2.5" SSD/HDD
• System - Ethernet controller: 2 x Intel® Ethernet Controller (2.5G)
• System - Security: TPM 2.0
• System - Operating System: Windows 11 IoT Enterprise (64-bit) optional; Windows 11 Pro 64-bit optional; Linux Ubuntu 22.04 optional (Wake on Touch not supported)
• System - WLAN / Bluetooth: optional (M.2 2230 E-Key)
• Mechanical - Dimension: 685.4 x 423.4 x 84.2 mm
• Mechanical - Weight: 11.3 kg
• Mechanical - Mounting: VESA mount
• Mechanical - Enclosure: Metal housing
• Mechanical - Cooling System: Fan design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports - USB Port: 4 x USB 3.2 Gen2x1 (10 Gbps, Type A)
• IO Ports - Serial Port: 1 x RS232/422/485 (default RS232) and 1 x RS232
• IO Ports - LAN: 2 x 2.5 Giga LAN RJ45 connectors
• IO Ports - Video: 1 x DP1.4a DP++ (max 4096x2160@60Hz default); optional 1 x HDMI 2.0b (max 4096x2160@60Hz)
• IO Ports - Audio: Mic in, Line out
• IO Ports - Expansion Port: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi module)
• IO Ports - Power Input: 1 x 12V DC, Din4 pin connector
• Control - Buttons: 1 x Power Button; 1 x Reset Button
• Accessory - Included/optional accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Power - Power Rating: 12V DC
• Power - Adapter: 12V 220W
