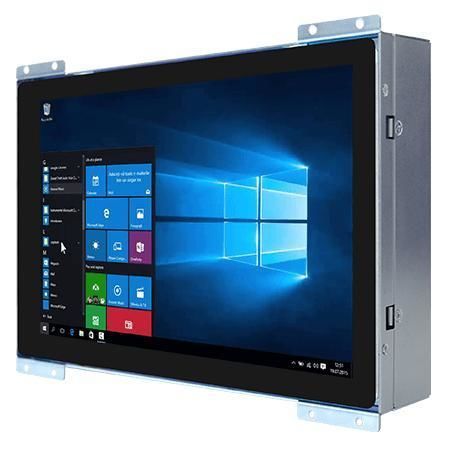

Multitouch screen panel PC W10IE3S-POA1

PCAP capacitive touch screen10.1"1920 x 1200

Product overview
Winmate W10IE3S-POA1 is a 10.1-inch PO Series HMI Panel PC powered by Intel® Celeron® Elkhart Lake N6211. Designed for machine control, factory automation and operator HMI applications, the device features a slim open-frame housing for embedded and kiosk installations and a projected capacitive (PCAP) multi-touch display for accurate on-screen operation.

Key features

• 10.1-inch 1920 x 1200 display, 700 nits brightness, 800:1 contrast
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• Slim open-frame design for space-constrained and kiosk installations
• Projected capacitive (PCAP) multi-touch flat panel
• Rich I/O for industrial integration: serial ports, USB, dual 2.5G LAN, video and audio
• Fanless metal housing with M.2 expansion for SSD and Wi‑Fi

Applications and benefits
The PO Series HMI panel PCs deliver an industrial-grade touch experience suited to operator panels, machine control units and kiosk applications in manufacturing, transport, retail, banking and healthcare. High connectivity, TPM 2.0 security and multiple mounting options simplify integration into industrial IoT and embedded systems.

Certifications

• CE
• FCC

Technical specifications

• Model: W10IE3S-POA1
• Brand: Winmate
• Display size / resolution: 10.1 inches, 1920 x 1200
• Touch / glass: Projected Capacitive Multi Touch Screen (PCAP)
• Brightness / Contrast: 700 nits / 800:1
• Active area: 216.576 x 135.36 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (default); optional 8 GB, 16 GB
• Storage: 128 GB SSD (default); optional 256/512 GB, 1 TB, 2 TB; 1 x SATA III for 2.5-inch SSD/HDD (optional)
• Ethernet: 2 x Intel® Ethernet controllers (2 x 2.5G LAN RJ45)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 22.04
• WLAN / Bluetooth: optional (M.2 2230 E-Key)
• Dimensions / Weight: 264 x 190 x 48 mm / 1.3 kg
• Mounting: Open frame (default); panel mount and VESA optional
• Enclosure / Cooling: Metal housing, fanless design
• Operating conditions: 0°C to 50°C; 10%–90% RH non-condensing
• IO: 2 x USB3.2 Gen2x1 Type-A
• Serial ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video / Audio: 1 x HDMI 2.0 (optional); 2 x speaker
• Expansion: 1 x M.2 2242 B-Key (for SATA III SSD); 1 x M.2 2230 E-Key (for Wi‑Fi)
• Indicators / Controls: LED power, LED storage, brightness adjustment knob
• Power: 1 x 12V DC (2.5φ DC jack); adapter 12V 50W; accessories: 100~240V AC to DC adapter, power cord, VESA screws
