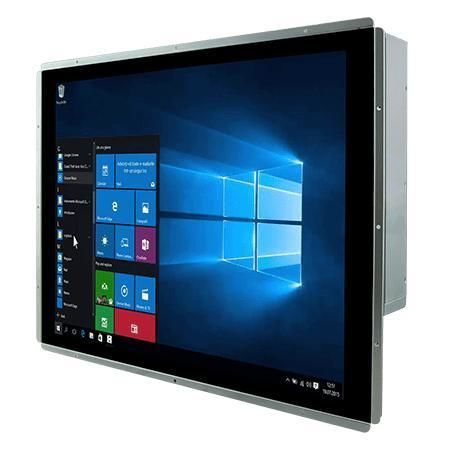

Multitouch screen panel PC R19IF7T-POM1

PCAP capacitive touch screen19"1280 x 1024

Overview
Winmate R19IF7T-POM1 is a 19.0" HMI Panel PC for machine control, factory automation and operator HMI applications. It combines a 1280 x 1024 projected capacitive (P-CAP) multi-touch display with Intel® 9th Gen Core™ i3/i5/i7 processors and an Intel® Q370 chipset. The platform is built for industrial deployments with open-frame installation, flexible storage and extensive I/O for IoT connectivity.

Key features

• 19" 1280 x 1024 projected capacitive multi-touch panel
• Intel® 9th Gen Core™ i3 / i5 / i7 (Coffee Lake Refresh)
• Flexible storage: 2.5" HDD bay, M.2 NVMe/SATA support, optional SATA RAID 0/1
• Multiple I/Os: 2x serial, 4x USB 3.2 Gen1 Type-A, 2x Gigabit LAN, DP1.2 and optional HDMI
• 12 V DC input with lockable Din4 pin connector

Product highlights

• Projected capacitive (PCAP) multi-touch for precise onscreen operation.
• Flat bezel and open-frame housing for embedded, kiosk or panel installations.
• Rich I/O set for industrial IoT and vertical application integration.
• Metal housing with fan cooling and multiple mounting options (open frame default; panel or VESA optional).
• Optional OS choices and TPM 2.0 for industrial security; CE and FCC certifications.

Technical specifications

• Model: R19IF7T-POM1
• Display: 19.0", 1280 x 1024, P-CAP multi-touch, 250 nits, 1000:1, active area 376.32 x 301.06 mm
• Processor: Intel Core i7-9700TE (default); i5-9500TE, i3-9100TE optional
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; optional 256/512/1TB/2TB; 2 x SATA III for 2.5" SSD/HDD; 1 x M.2 2280/2242 (NVMe/SATA); 1 x M.2 2230 E-Key
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 optional; DP up to 4096 x 2304 @ 60 Hz
• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• Audio: Mic In, Line Out, 2 x Speaker
• Expansion: 1 x PCIe 3.0 x16; M.2 slots for NVMe/SATA and Wi‑Fi module
• Power: 1 x 12 V DC (lockable Din4 pin); adapter 12 V 120 W
• Dimensions / Weight: 457 x 382 x 62 mm; 4.8 kg
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH non-condensing
• Certifications: CE, FCC
