Multi-touch screen panel PC R17IP7T-POM1
PCAP capacitive touch screen17"1280 x 1024

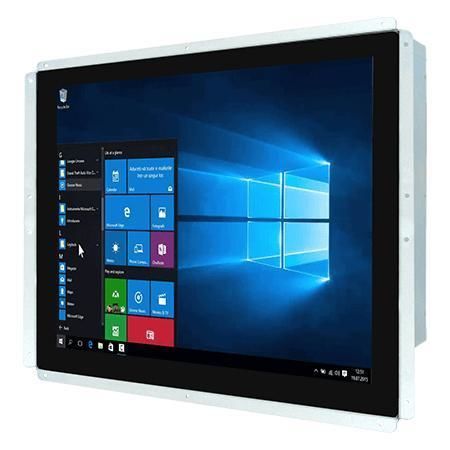

Multi-touch screen panel PC - R17IP7T-POM1 - Winmate, Inc. - PCAP capacitive touch screen / 17" / 1280 x 1024
Multi-touch screen panel PC - R17IP7T-POM1 - Winmate, Inc. - PCAP capacitive touch screen / 17" / 1280 x 1024
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multi-touch screen
Display size
17"
Resolution
1280 x 1024
Processor
Intel® Pentium® N4200
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise
Construction
fanless, open frame, metal chassis, plastic housing
Mounting
VESA mounting
Applications
industrial, data acquisition, for self-service information kiosk
Protection level
IP65
Other characteristics
HMI, all-in-one, with external power adapter
Memory size

Min.: 0 GB

Max.: 16 GB

Description

Overview
  • Winmate R17IP7T-POM1 is a 17" PO Series HMI Panel PC powered by Intel® Pentium® N4200 (Apollo Lake), engineered for machine control, factory automation and operator HMI applications.


Key features
  • 17" display, 1280 x 1024 resolution, 350 nits brightness
  • Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz burst)
  • Slim open-frame housing with projected capacitive (PCAP) multi-touch flat front
  • 12 V DC input (power jack / Din4 connector)
  • Fanless design, metal enclosure and front IP65 rating for protected installations
  • Rich I/O: multiple USB, serial, LAN, video and audio ports


Certifications
  • CE
  • FCC


Product highlights / design notes
  • Open-frame format and slim bezel allow installation in kiosks and space-constrained embedded systems.
  • Fanless metal housing supports stable field operation and long lifecycle availability for industrial OEMs and integrators.
  • Flexible mounting: default open frame, optional panel mount and optional VESA mount.


Additional product description
  • PCAP multi-touch enables responsive onscreen operation suitable for operator panels and self-service kiosks.
  • High expandability with M.2 slots and a PCIe x1 slot for storage, wireless modules and custom I/O.
  • Multiple configuration options for storage (128GB default; optional 256GB/512GB/1TB; optional 2 x SATA III) and memory (up to 16GB SO-DIMM).


Technical specifications
  • Model: R17IP7T-POM1
  • Display: 17.0 inches, 1280 x 1024, 350 nits, contrast 1000:1, viewing angles 85/85/80/80, active area 337.920 x 270.336 mm
  • Touch/Glass: Projected Capacitive Multi-Touch (PCAP), flat front
  • Processor: Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz)
  • Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
  • Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB; optional 2 x SATA III for 2.5" SSD/HDD (RAID optional)
  • Ethernet: 2 x Intel® Gigabit Ethernet controllers
  • Security: TPM 2.0
  • OS (optional): Windows 10 IoT Enterprise 64-bit; Linux Ubuntu (versions referenced on page)
  • WLAN/Bluetooth: optional via M.2 Wi‑Fi module
  • Mechanical dimensions: 407 x 338 x 69 mm; Weight: ~4.5 kg
  • Mounting: Open frame (default); optional panel mount; optional VESA mount
  • Enclosure: Metal housing; Cooling: Fanless
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0 °C to 50 °C; Storage temperature: -10 °C to 60 °C
  • Front IP rating: IP65
  • IO Ports: 4 x USB 3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x Gigabit RJ45; Video: 1 x DP1.2 (default), optional HDMI 1.4, optional VGA; Audio: Mic in, Line out, 2 x Speaker
  • Expansion: 1 x M.2 2242 B-key (SATA III SSD), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
  • Indicators & controls: LED power, LED storage, brightness adjustment knob, power and reset buttons
  • Power input: 1 x 12 V DC Din4 pin connector; Adapter: 12 V 84 W (100~240 V AC to DC) and power cord
  • Accessories (typical): AC/DC adapter, power cord, VESA screws, driver CD & manual
