Multi-touch screen panel PC R15IP7T-POC3
PCAP capacitive touch screen15"1024 x 768

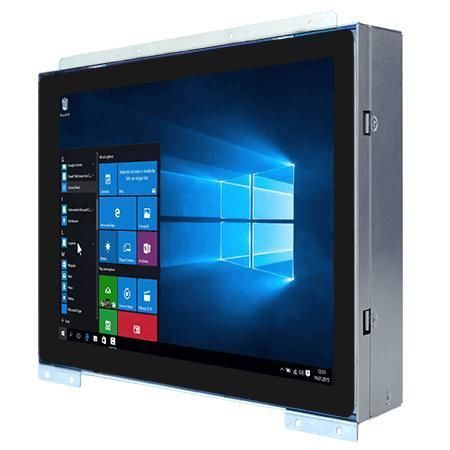

Multi-touch screen panel PC - R15IP7T-POC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768
Multi-touch screen panel PC - R15IP7T-POC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768
Multi-touch screen panel PC - R15IP7T-POC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768 - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multi-touch screen
Display size
15"
Resolution
1024 x 768
Processor
Intel® Apollo Lake, Intel® Pentium® N4200
Memory
DDR3L SO-DIMM
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise
Construction
fanless, metal chassis
Mounting
VESA mounting
Applications
industrial, POC
Protection level
IP65
Other characteristics
HMI, all-in-one, with external power adapter
Memory size

Min.: 0 GB

Max.: 16 GB

Description

Overview
The R15IP7T-POC3 is a 15-inch PO Series HMI Panel PC powered by Intel Pentium N4200 (Apollo Lake), designed for machine control, factory automation and operator interfaces. It offers a fanless metal enclosure, projected capacitive multi-touch, flexible storage and extensive I/O for industrial integrations.

Key features
  • 15.0-inch display, 1024 x 768 resolution, projected capacitive (PCAP) multi-touch
  • Intel Pentium N4200 (1.10 GHz base, burst up to 2.5 GHz)
  • Flexible storage: M.2 SSD and optional 2.5-inch HDD/SSD bays (2 x SATA III)
  • Multiple I/O: serial ports, 4 x USB 3.0, 2 x Gigabit LAN, DP video (HDMI/VGA optional)
  • 12 V DC power input (Din4), fanless metal housing and front IP65 protection
  • Supports TPM 2.0 and optional Windows 10 IoT Enterprise or Linux


Certifications
  • CE
  • FCC


Technical specifications
  • Display: 15.0 inches; Projected Capacitive Multi-Touch; Resolution 1024 x 768; Brightness 300 nits; Contrast 2000:1; Viewing angles 88/88/88/88; Active area 304.1 x 228.1 mm
  • Processor: Intel Pentium N4200 (1.10 GHz base, up to 2.5 GHz)
  • Memory: Dual-channel SO-DIMM (DDR3L) up to 16 GB
  • Storage: 128 GB SSD default; options 256/512 GB/1 TB SSD; optional 2 x SATA III for 2.5-inch HDD/SSD; 1 x M.2 2242 B-key (SATA)
  • Expansion: 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
  • Ethernet: 2 x Intel Gigabit LAN (RJ45); Security: TPM 2.0
  • OS: Windows 10 IoT Enterprise (64-bit) optional; Linux (Ubuntu) optional
  • Wireless: WLAN and Bluetooth optional
  • USB/Serial/Video/Audio: 4 x USB 3.2 Gen1 Type-A; 1 x RS232/422/485 (default RS232) + 1 x RS232; 1 x DP1.2 (default), HDMI 1.4 and VGA optional; Mic-in, Line-out, 2 x Speaker
  • Indicators & Controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
  • Power: 1 x 12 V DC Din4 pin connector; Adapter typical 12 V 50 W
  • Mechanical: Dimensions 360 x 274 x 63 mm; Weight ~4.1 kg; Mounting: Open frame (default), panel mount or VESA optional
  • Enclosure & Cooling: Metal housing, fanless design; Front protection IP65
  • Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–50°C; Storage temperature -10°C–60°C
  • Accessories: 100–240 V AC to DC adapter, power cord, VESA screws, driver CD & manual
