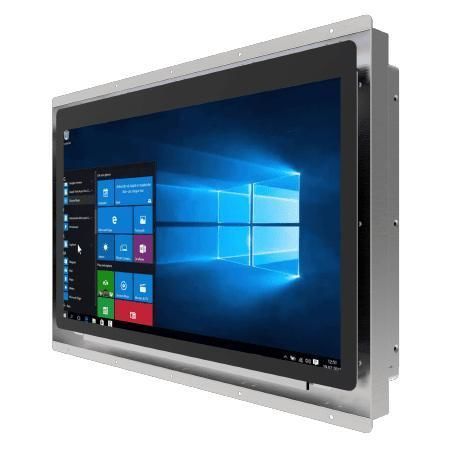

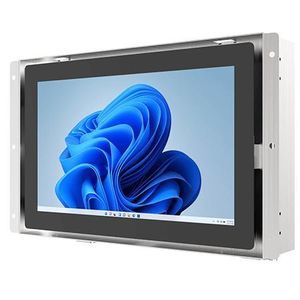

Multitouch screen panel PC W15IT7T-POA4

PCAP capacitive touch screen15.6"1920 x 1080

Overview
Winmate W15IT7T-POA4 is a 15.6-inch PO Series HMI Panel PC built for machine control, factory automation and operator interfaces. It integrates Intel® Core™ i5 (Tiger Lake) performance with a projected capacitive multi-touch display and industrial-grade I/O for embedded and mission-critical applications.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (standard) or i5-1145G7E (vPro option)
• 15.6" FHD 1920 x 1080 with Projected Capacitive Multi-Touch (PCAP)
• Multi-display support: DisplayPort / HDMI / LVDS / eDP panel interfaces
• Front panel protection IP65
• Rich I/O: serial ports, 4 x USB 3.2 Gen1 Type-A, Gigabit + 2.5GbE LAN, audio
• Fanless metal housing and 12V DC single-voltage input

Certifications

• CE
• FCC

Applications & Design highlights

• Responsive onscreen operation via PCAP multi-touch for operator control and HMI workflows.
• Flat bezel and open-frame design for compact installations, kiosks and embedded systems.
• Industrial connectivity for IoT and system integration: serial, USB, LAN, video and audio ports; installation-friendly, fanless design for stable field operation.

Technical specifications

• Model: W15IT7T-POA4
• Display: 15.6 inches; Projected Capacitive Multi Touch; Resolution 1920 x 1080; Panel brightness 300 nits; Contrast ratio 800:1; Viewing angles 85/85/85/85; Active area 344.16 x 193.59 mm
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz). Option: i5-1145G7E (with vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2280 M-Key (NVMe)
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported on Linux)
• Wireless: WLAN / Bluetooth optional via M.2 2230 E-Key
• Mechanical: Dimensions 392.2 x 268 x 65 mm; Weight 3.6 kg; Metal housing; Fanless design
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C
• Certifications: CE, FCC
• I/O Ports: 4 x USB 3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 1 x Gigabit RJ45 + 1 x 2.5G RJ45; Video: 1 x DisplayPort 1.4 (default), HDMI 2.0 optional; Audio: Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi module); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators & Controls: Power LED, Storage LED, Brightness adjustment knob, Power button, Reset button
• Power: 12 V DC input via Din4 pin connector; Adapter 12 V 120 W; Accessories: 100–240 V AC to DC adapter, power cord, VESA screws
