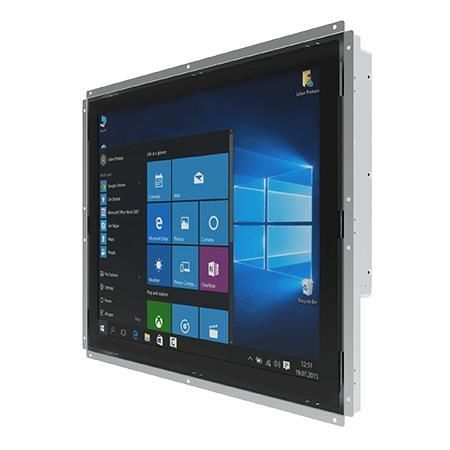

Multitouch screen panel PC R17IT7T-POM1

PCAP capacitive touch screen17"1280 x 1024

Overview
Winmate R17IT7T-POM1 is a 17-inch HMI Panel PC for machine control, factory automation and operator HMI applications. Powered by Intel® Core™ Tiger Lake UP3 processors (examples: i5-1135G7 / i5-1145G7E), it combines a 1280×1024 PCAP multi-touch display, extensive I/O, multi-display support and a fanless metal enclosure with front IP65 protection.

Key Features

• Intel® Core™ Tiger Lake UP3 (e.g. i5-1135G7 / i5-1145G7E)
• 17.0" display, 1280 × 1024, 350 nits
• Projected capacitive (PCAP) multi-touch
• Multi-display interfaces: DP / HDMI / LVDS / eDP
• Multiple I/O: serial, 4×USB 3.2, Gigabit + 2.5G LAN, audio, expansion slots
• Front panel IP65; metal housing; fanless cooling
• 12V DC single-voltage input; TPM 2.0

Highlights

• Accurate onscreen interaction with PCAP multi-touch suitable for operator panels and kiosks.
• Open-frame / flat-bezel design for embedded installations and constrained spaces.
• Rich connectivity for industrial IoT: serial, USB, LAN, DP/HDMI video outputs and expansion (M.2, PCIe).

Certifications

• CE
• FCC

Technical specifications

• Display: 17.0"; Resolution: 1280 × 1024; Brightness: 350 nits; Contrast: 1000:1; View angles: 85/85/80/80; Active area: 337.920 × 270.336 mm
• Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz) — Tiger Lake UP3 family (also i5-1145G7E with vPro)
• Memory: 2 × non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); options up to 4 TB; 1 × SATA III for 2.5" drive (optional); M.2 2280 NVMe slot
• Ethernet: 1 × Gigabit RJ45, 1 × 2.5 Gigabit RJ45; Wireless/Bluetooth optional (M.2 2230 E-Key)
• I/O: 4 × USB 3.2 (Type-A), 1 × RS232/422/485 (default RS232), 1 × RS232, 1 × DP1.4 (default), 1 × HDMI 2.0 (optional), Mic-in, Line-out
• Expansion: 1 × PCIe 4.0 x16 (x4 signal)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Ubuntu 22.04 (no Wake on Touch)
• Mechanical: Dimensions 407.4 × 338.4 × 69 mm; Weight 4.5 kg; Mounting: Open frame (standard), Panel mount (optional), VESA (optional)
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10% to 90% RH non-condensing
• Power: 1 × 12V DC Din4-pin connector; typical adapter 12V 120W
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Accessories: 100–240V AC to DC adapter, power cord, VESA screws
