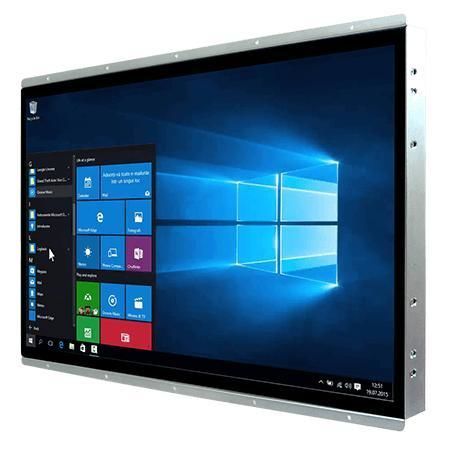

Multitouch screen panel PC W22IP7T-POA3

widescreenLCDPCAP capacitive touch screen

Overview
Winmate W22IP7T-POA3 is a 21.5-inch PO Series HMI Panel PC powered by an Intel® Pentium® N4200 (Apollo Lake). Designed for machine control, factory automation, operator HMI and kiosk installations, it features a slim open-frame housing, PCAP multi-touch display, fanless cooling and industrial I/O set for embedded use.

Key features

• Display: 21.5 inches, 1920 x 1080, 250 nits, PCAP multi-touch
• Processor: Intel® Pentium® N4200 (1.1 GHz base, up to 2.5 GHz)
• I/O: 4 x USB3.2 Gen1, 2 x Gigabit LAN, serial ports, DP1.2 (HDMI/VGA optional), audio
• Storage & memory: 128 GB SSD default; optional up to 1 TB; SO‑DIMM up to 16 GB
• Mechanical: Open‑frame metal housing, dimensions 526 x 338 x 69 mm, approx. 5.5 kg; Front IP65
• Power & cooling: 12 V DC (Din4) input; fanless design
• Security & certification: TPM 2.0; CE, FCC

Applications and integration
The open‑frame form factor and flat bezel simplify panel, kiosk or VESA mounting for embedded systems and OEM integrations. Rich I/O and expansion options (M.2, SATA, PCIe) enable industrial IoT connectivity and customized configurations for banking, healthcare, retail, transportation and machine control.

Certifications

• CE
• FCC

Technical specifications

• Display: 21.5 inches; 1920 x 1080; 250 nits; contrast 3000:1; active area 476.64 x 268.11 mm
• Touch/Glass: Projected capacitive (PCAP) multi‑touch
• CPU: Intel® Pentium® N4200
• Memory: Dual‑channel SO‑DIMM up to 16 GB (non‑ECC)
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB; optional 2 x SATA III for 2.5‑inch drives; M.2 2242 B‑key (SATA)
• LAN: 2 x Intel® Gigabit Ethernet (RJ45)
• I/O: 4 x USB3.2 Gen1 Type‑A; serial: RS232/422/485 options; DP1.2 (HDMI/VGA optional); audio in/out; 1 x PCIe 2.0 x1
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64‑bit) optional; Linux Ubuntu optional
• Dimensions & weight: 526 x 338 x 69 mm; approx. 5.5 kg
• Environment: Operating 0°C to 50°C; storage −10°C to 60°C; humidity 10%–90% RH non‑condensing
• Power: 12 V DC (Din4); typical adapter 12 V 84 W
• Accessories: AC/DC adapter, power cord, VESA screws, manual
