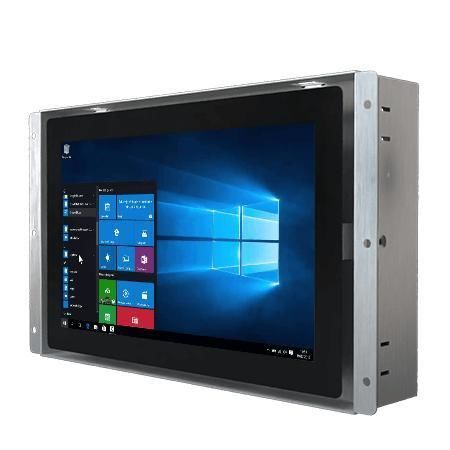

Multitouch screen panel PC W07IE3S-POT1

PCAP capacitive touch screen7"1024 x 600

Overview
The W07IE3S-POT1 is a 7-inch PO Series HMI Panel PC designed for machine control, factory automation, embedded kiosks and operator interfaces. It combines a slim open-frame metal housing, projected capacitive (PCAP) multi-touch display and an Intel® Celeron® N6211 processor to support space-constrained installations and vertical IoT applications.

Key features

• 7.0" display, 1024 x 600 resolution, 320 nits
• Projected Capacitive (PCAP) multi-touch flat design
• Intel® Celeron® N6211 (Elkhart Lake) processor, up to 3.0 GHz
• Dual 2.5 Giga Ethernet (2 x RJ45)
• Slim open-frame mounting for embedded/kiosk use
• Fanless metal housing for low-noise operation

Certifications

• CE
• FCC

Product highlights

• Accurate, responsive touchscreen interaction via PCAP multi-touch for operator and kiosk workflows.
• Open-frame, flat-bezel design simplifies integration into panels, kiosks and space-limited enclosures.
• Comprehensive I/O for industrial IoT: serial ports, USB 3.2, dual 2.5G LAN, optional HDMI, audio and expansion slots (M.2, SATA).
• Security and reliability features including TPM 2.0, fanless cooling and metal enclosure for sustained field operation.

Technical specifications

• Model: W07IE3S-POT1
• Commercial name: 7" Intel® Celeron® N6211 PO Series HMI Panel PC
• Display size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1024 x 600
• Panel brightness: 320 nits
• Contrast ratio: 1000:1
• View angles: 75 / 75 / 75 / 70 (typical)
• Active area: 153.6 x 90 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (default); optional 8 GB, 16 GB
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB, 2 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (2.5 Giga LAN RJ45)
• Security: TPM 2.0
• Operating systems (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• WLAN / Bluetooth: supported (optional via M.2)
• Dimensions: 208 x 126 x 46 mm
• Weight: 1.2 kg
• Mounting: Open frame (default); panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB ports: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2242 B-Key (SATA III SSD); 1 x M.2 2230 E-Key (Wi‑Fi module)
• Indicators: power LED, storage LED
• Power input: 1 x 12V DC, 2.5φ DC jack; adapter: 12V 50W
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Certifications: CE, FCC
