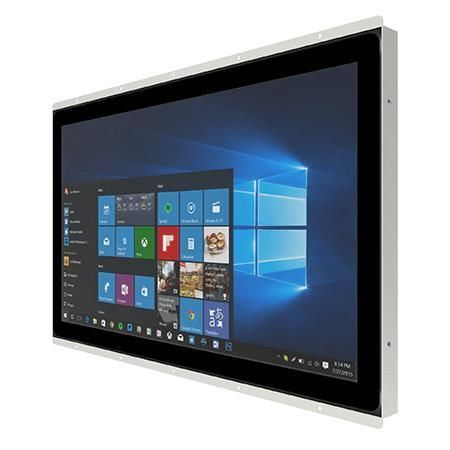

Multitouch screen panel PC W22IT7T-POA3

touch screenPCAP capacitive touch screen21.5"

Overview
Winmate W22IT7T-POA3 is a 21.5-inch PO Series HMI Panel PC featuring Intel® Core™ Tiger Lake i5 processors (i5-1135G7 / i5-1145G7E with vPro option). It is designed for machine control, factory automation and operator HMI applications. Key capabilities include a 1920x1080 Full HD projected capacitive multi-touch display, multi-display support (DP/HDMI/LVDS/eDP), rich I/O including serial and USB ports, front IP65 protection, 12V single-voltage power input, fanless metal housing and multiple storage and OS options.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) / i5-1145G7E (with vPro, optional)
• 1920 x 1080 Full HD resolution with projected capacitive (PCAP) multi-touch
• Multi-display interfaces: DP / HDMI / LVDS / eDP
• Extensive I/O: serial ports, 4 x USB 3.2 Gen2x1 Type-A, Gigabit and 2.5G LAN
• Front panel protection IP65 for water and dust resistance
• 12V DC single-voltage power input, fanless metal housing

Product highlights

• Responsive touchscreen interaction via PCAP for efficient operator control.
• Open-frame, flat-bezel design for compact integration in kiosks and embedded systems.
• Rich I/O and expansion options (M.2, PCIe) for IoT connectivity and industrial integration.

Certifications

• CE
• FCC

Technical specifications

• Model: W22IT7T-POA3
• Brand: Winmate
• Display size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi-Touch (PCAP)
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• View angles: 89 / 89 / 89 / 89
• Active area: 476.64 x 268.11 mm
• Processor: Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz); optional i5-1145G7E (vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45)
• Security: TPM 2.0
• Operating systems (options): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (option, Wake on Touch not supported)
• WLAN / Bluetooth: optional (M.2 2230 E-Key for Wi‑Fi)
• Dimensions: 526 x 338 x 69 mm
• Weight: 5.5 kg
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IO Ports: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit LAN (RJ45) + 1 x 2.5 Gigabit LAN (RJ45)
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators & controls: Power LED; Storage LED; Brightness adjustment knob; Power and Reset buttons
• Power input: 1 x 12V DC, Din4 pin connector; Power rating: 12V DC; Adapter: 12V 120W
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Certifications: CE, FCC
