Multitouch screen panel PC W24IP7T-POA2
PCAP capacitive touch screen23.8"1920 x 1080

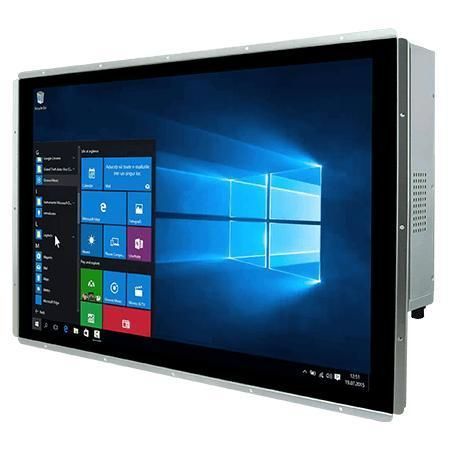

Multitouch screen panel PC - W24IP7T-POA2 - Winmate, Inc. - PCAP capacitive touch screen / 23.8" / 1920 x 1080
Multitouch screen panel PC - W24IP7T-POA2 - Winmate, Inc. - PCAP capacitive touch screen / 23.8" / 1920 x 1080
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multitouch screen
Display size
23.8"
Resolution
1920 x 1080
Processor
Intel® Pentium® N4200
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise
Construction
fanless, open frame, plastic housing
Mounting
VESA mounting, embedded
Applications
industrial, for medical applications, for self-service information kiosk
Protection level
IP65, waterproof front panel
Other characteristics
HMI, Ethernet, RJ45, WiFi, Bluetooth, with external power adapter
Memory size

4 GB, 8 GB

Description

Overview
  • Winmate W24IP7T-POA2 is a 24-inch PO Series HMI Panel PC designed for machine control, factory automation and operator HMI applications in embedded and kiosk environments.
  • Equipped with Intel® Pentium® Apollo Lake N4200 (1.10 GHz base, up to 2.5 GHz burst) and a projected capacitive (PCAP) multi-touch 23.8" FHD display for precise onscreen operation.
  • Slim open-frame housing and flat bezel enable integration in condensed spaces; fanless metal enclosure improves reliability for industrial deployments.


Key features
  • Display: 23.8" (24" commercial), 1920 x 1080, 250 nits, 3000:1 contrast
  • Processor: Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz burst)
  • Touch: Projected Capacitive (PCAP) multi-touch, flat design
  • Design: Slim open-frame / panel mount / VESA mount; front IP65
  • Power: 12 V DC IN (Din4 pin connector), adapter 12V 84W listed
  • I/O: 4 x USB3.2 Gen1 Type-A, 2 x Gigabit LAN, serial ports, DP1.2 (HDMI/VGA optional), audio in/out


Product highlights and usage
  • Accurate touch interaction: PCAP multi-touch enables multi-finger gestures and reliable input for operator panels and kiosks.
  • Space-efficient integration: slim bezel and open-frame housing facilitate embedded installation in kiosks, ATMs, medical carts and industrial control panels.
  • Rich connectivity for IoT: multiple serial ports, USB, LAN and expansion slots (M.2, PCIe) support sensors, communication modules and storage options.


Certifications
  • CE
  • FCC


Technical specifications
  • Display — Size: 23.8 inches; Resolution: 1920 x 1080; Brightness: 250 nits; Contrast: 3000:1; View angles: 89/89/89/89; Active area: 527.04 x 296.46 mm
  • Touch / Glass — Projected Capacitive Multi Touch Screen (PCAP)
  • System — Processor: Intel® Pentium® N4200 (2M Cache, 1.10 GHz base, up to 2.5 GHz burst)
  • System — Memory: 2 x SO-DIMM DDR3L 1866 MHz; 4GB default, 8GB optional
  • System — Storage: 1 x M.2 2242 SSD 128GB (default); optional 256GB / 512GB; optional 2 x SATA III for 2.5" SSD/HDD
  • System — Ethernet: 2 x Intel® Ethernet Controller (Gigabit)
  • Security — TPM 2.0
  • OS — Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu optional
  • WLAN / Bluetooth — Optional via M.2 2230 E-Key
  • Mechanical — Dimensions: 615 x 385 x 68.8 mm; Weight: 6.3 kg; Mounting: Open Frame, Panel Mount, VESA Mount; Enclosure: Metal housing; Cooling: Fanless
  • Environment — Operating humidity: 10%–90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C (variation noted)
  • IP rating — Front IP65
  • IO Ports — USB: 4 x USB3.2 Gen1x1 (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x Gigabit RJ45; Video: 1 x DP1.2 (default); HDMI 1.4 / VGA optional; Audio: Mic in, Line out, 2 x Speaker
  • Expansion — 1 x M.2 2242 B-Key (SATA SSD); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 2.0 x1
  • Indicators & controls — Power LED, Storage LED, Brightness adjustment knob, Power and Reset buttons
  • Power — Input: 12 V DC (Din4 pin); Adapter: 12V 84W (100~240V AC to DC) listed; Accessories: power cord, VESA screws, driver CD & manual (per configuration)
