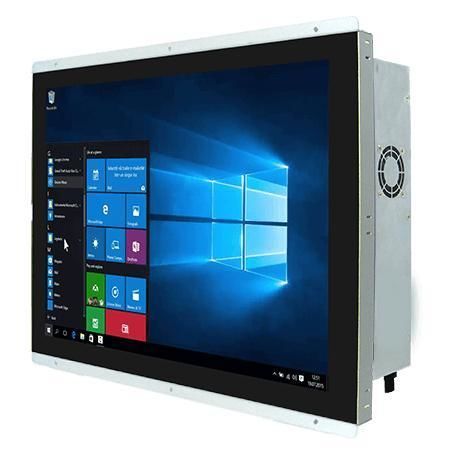

Multitouch screen panel PC R17IF7T-POM1

PCAP capacitive touch screen17"1280 x 1024

Overview
Winmate R17IF7T-POM1 is a 17-inch PO Series HMI Panel PC for machine control, factory automation and operator HMI applications. It integrates a projected capacitive (PCAP) multi-touch display, flexible storage and rich I/O for industrial IoT connectivity suitable for embedded and mission-critical environments.

Key Features

• 17‑inch display, 1280 x 1024 resolution, 350 nits
• Intel® 9th Gen Core™ processors: i3 / i5 / i7 (Coffee Lake Refresh)
• Flexible storage: M.2 NVMe support, 2.5" SATA bay (RAID 0/1 optional)
• Multiple I/O: 4 x USB 3.2 Gen1, 2 x Gigabit LAN, serial ports (RS232/422/485)
• 12V DC lockable power input; DP and optional HDMI video outputs
• PCAP multi-touch for responsive on-screen operation

Certifications

• CE
• FCC

Product Details
Display
Size: 17.0 inches
Touch / Glass: Projected Capacitive Multi Touch Screen
Resolution: 1280 x 1024
Panel Brightness: 350 nits
Contrast Ratio: 1000:1
View Angles: 85/85/80/80 (deg)
Active Area: 337.920 x 270.336 mm

System Specification
Processor: Intel® Core™ i7-9700TE 1.8GHz (up to 3.8GHz) (Default); Intel® Core™ i5-9500TE 2.2GHz (Optional); Intel® Core™ i3-9100TE 2.2GHz (Optional)
Chipset: Intel® Q370
Memory: 2 x non‑ECC SO‑DIMM, up to 64GB (32GB per DIMM)
Storage: 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB; 2 x SATA III for 2.5" HDD/SSD; 1 x M.2 2280/2242 M-Key (NVMe/SATA), 1 x M.2 2230 E-Key (Wi‑Fi)
Ethernet controller: 2 x Intel® Gigabit LAN
Security: TPM 2.0
OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options available
WLAN / Bluetooth: optional via M.2 Wi‑Fi module

Mechanical
Dimensions: 407 x 338 x 69 mm
Weight: 4.5 kg
Mounting: Open frame (default); Panel mount and VESA mount optional
Enclosure: Metal housing
Cooling: Active fan design

Environment
Operating Humidity: 10%–90% RH non‑condensing
Operating Temperature: 0°C to 50°C
Storage Temperature: -10°C to 60°C

IO Ports

• USB: 4 x USB 3.2 Gen1 (Type‑A)
• Serial: 1 x RS232/422/485 (configurable, default RS232) + 1 x RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional)
• Audio: 1 x Mic in; 1 x Line out; 2 x Speaker
• Expansion: 1 x M.2 2280/2242 M‑Key (NVMe/SATA), 1 x M.2 2230 E‑Key (Wi‑Fi), 1 x PCIe 3.0 x16 (optional)

Additional Notes
Designed for industrial HMI and embedded applications with a slim open‑frame bezel ideal for kiosks and panel integration. Target verticals include machine control, factory automation, banking, healthcare, retail and transportation.

Technical specifications

• Model: R17IF7T-POM1
• Brand: Winmate
• Display: 17" PCAP multi‑touch, 1280x1024, 350 nits
• CPU options: Intel® Core™ i7-9700TE / i5-9500TE / i3-9100TE
• Memory: Up to 64GB DDR4 (2 x SO‑DIMM)
• Storage: M.2 NVMe + 2 x SATA III (2.5" SSD/HDD), RAID optional
• I/O: 4 x USB3.2 Gen1, 2 x Gigabit LAN, serial ports, DP1.2, optional HDMI
• Power: 12V DC lockable jack, 12V 120W adapter
• Mounting: Open frame / Panel mount / VESA
• Dimensions / Weight: 407 x 338 x 69 mm / 4.5 kg
• Certifications: CE, FCC
