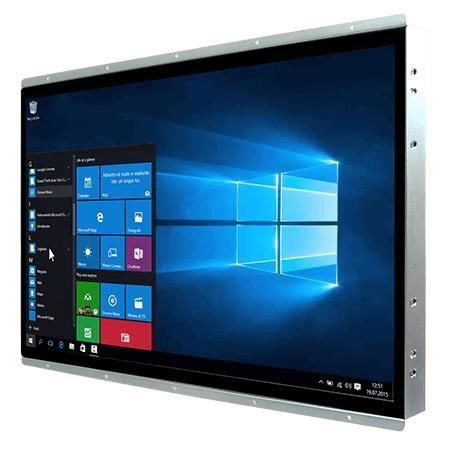

Multitouch screen panel PC W24IF7T-POA2

PCAP capacitive touch screen24"1920 x 1080

Overview
The Winmate W24IF7T-POA2 is a 24-inch PO Series HMI Panel PC engineered for machine control, factory automation and operator-interface applications. It combines a projected capacitive (PCAP) multi-touch display, 9th Gen Intel® Core™ processor options and a fanless metal chassis to support industrial integration and long lifecycle deployments.

Key Features

• 24-inch 1920 x 1080 Full HD PCAP multi-touch display
• Intel® 9th Gen Core™ i3 / i5 / i7 processor options
• Flexible storage: 2.5" HDD bay + M.2 slots (NVMe/SATA options)
• Multiple I/O: serial ports, 4 x USB 3.2 Gen1, 2 x Gigabit LAN
• 12 V DC lockable Din4 power input; DisplayPort / optional HDMI outputs

Product Highlights and Usage
The PO Series open-frame HMI is suited for embedded and kiosk installations where compact mounting and touch operation are required. The PCAP touch gives precise multi-touch control for operator panels. Typical deployments include machine control, factory automation, transportation, retail kiosks, banking and medical/healthcare terminals when industrial-grade hardware is required.

Certifications

• CE
• FCC

Additional Notes
The unit features a fanless design, metal housing and multiple mounting options (open frame, panel mount, VESA). Optional modules include TPM 2.0, wireless via M.2 2230 E-Key and PCIe expansion.

Technical Specifications

• Display Size: 24 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1920 x 1080 (Full HD)
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89 / 89 / 89 / 89
• Active Area: 527.04 x 296.46 mm
• Processor (options): Intel Core i7-9700TE / i5-9500TE / i3-9100TE
• Chipset: Intel B360 (default) or Intel Q370 (optional)
• Memory: 1 x SO-DIMM DDR4 2400 MHz (4GB default; optional up to 64GB)
• Storage: M.2 2242 B-key SSD 128GB (default); optional M.2 2280 NVMe; 2 x SATA III for 2.5" drives (RAID 0/1 optional)
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• Security: TPM 2.0 (optional)
• OS (optional): Windows 10 IoT Enterprise 64-bit; Linux Ubuntu
• WLAN / Bluetooth: optional (M.2 2230 E-Key)
• Mechanical Dimensions: 615 x 385 x 68.8 mm
• Weight: approx. 6.3 kg
• Mounting Options: Open Frame, Panel Mount, VESA Mount
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH (non-condensing)
• Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C
• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video Output: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional)
• Audio: 1 x Mic in; 1 x Line out; 2 x built-in speakers
• Expansion: 1 x M.2 2280/2242 M-Key (NVMe/SATA), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 3.0 x16 (optional)
• Indicators: Power LED, Storage LED
• Brightness Control: Brightness adjustment knob
• Power Input: 1 x 12 V DC Din4 pin connector (lockable)
• Control Buttons: Power, Reset
• Accessories: 100~240 V AC to DC adapter, power cord, VESA screws, driver CD & manual (depending on configuration)
• Power Rating / Adapter: example 12 V 120 W
