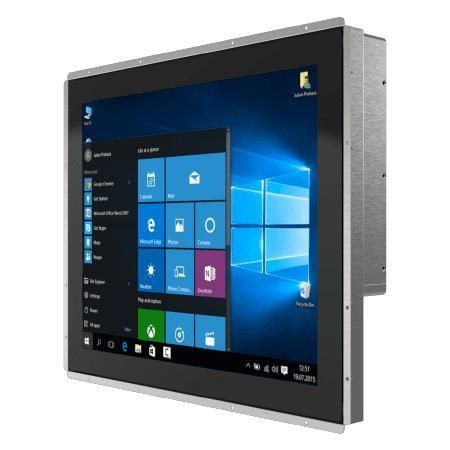

Multitouch screen panel PC R19IT7T-POM1

PCAP capacitive touch screen19"1280 x 1024

Overview
Winmate R19IT7T-POM1 is a 19” PO Series HMI Panel PC powered by Intel® Core™ i5 (Tiger Lake) processors, designed for machine control, factory automation and operator HMI applications. It delivers a slim open-frame design, projected capacitive multi-touch and front IP65 protection for industrial and embedded installations.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 1280 x 1024 resolution, 19.0-inch display
• Projected capacitive (PCAP) multi-touch screen
• Multi-display support: DP / HDMI / LVDS / eDP
• Rich I/O: serial ports, 4 x USB 3.2 Gen2x1 (Type-A), LAN, audio
• Front IP65 water and dust protection
• 12V single-voltage DC input; fanless metal housing

Product highlights
The PO Series HMI Panel PC combines a flat bezel open-frame housing for space-constrained panels and kiosks with PCAP multi-touch for precise onscreen operation. Flexible I/O and expansion (M.2, PCIe) enable integration with industrial automation, IoT gateways and OEM embedded systems. Dual Intel Ethernet and optional WLAN/BT support robust network connectivity for control and monitoring tasks.

Certifications
CE, FCC

Technical specifications

• Model: R19IT7T-POM1
• Display size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1280 x 1024
• Panel brightness: 250 nits
• Contrast ratio: 1000:1
• Viewing angles: 85,85,80,80
• Active area: 376.32 x 301.06 mm
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); optional i5-1145G7E (vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (1 x Gigabit RJ45, 1 x 2.5G RJ45)
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN/BT: optional support (M.2 2230 E-Key)
• Dimensions: 456 x 382 x 74 mm
• Weight: 4.8 kg
• Mounting: Open frame (default); panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing; fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB ports: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit RJ45 + 1 x 2.5G RJ45
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators: 1 x LED for power; 1 x LED for storage
• Brightness control: 1 x brightness adjustment knob
• Power input: 1 x 12V DC, Din4 pin connector
• Power rating / adapter: 12V DC; adapter: 12V 120W (100~240V AC to DC)
• Buttons: 1 x Power; 1 x Reset
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Certifications: CE, FCC
