Multitouch screen panel PC R15IF7T-POC3
PCAP capacitive touch screen15"1024 x 768

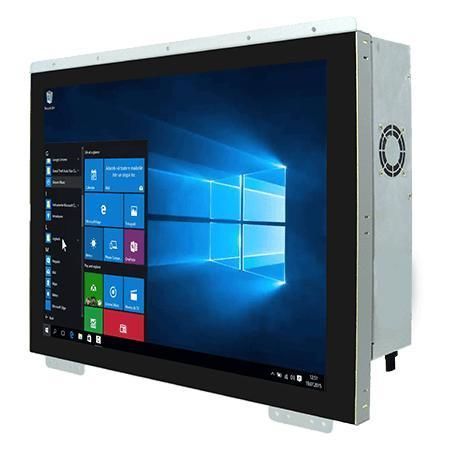

Multitouch screen panel PC - R15IF7T-POC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768
Multitouch screen panel PC - R15IF7T-POC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multitouch screen
Display size
15"
Resolution
1024 x 768
Processor
Intel® Core™ i5-9500TE, Intel® Core™ i7-9700TE, Intel® Core™ i3-9100TE
Operating system
Linux, Windows 10 IoT Enterprise
Construction
metal chassis, plastic housing
Mounting
VESA mounting, embedded, kiosk
Applications
industrial
Other characteristics
HMI, all-in-one, with external power adapter
Memory size

Min.: 0 GB

Max.: 64 GB

Description

Overview
Winmate R15IF7T-POC3 is a 15-inch HMI Panel PC for machine control, factory automation and operator HMI tasks. It integrates a 15.0" XGA (1024 x 768) projected capacitive multi-touch display, supports Intel® 9th Gen Core™ i3/i5/i7 processors, offers flexible 2.5" and M.2 storage options, multiple industrial I/O and 12 V DC power input for embedded installations.

Key features
  • 15.0" XGA (1024 x 768) projected capacitive (PCAP) multi-touch panel
  • Intel® 9th Gen Core™ i3 / i5 / i7 processor options (Coffee Lake Refresh)
  • Flexible storage: 2.5" HDD/SSD support plus M.2 NVMe/SATA
  • Multiple I/Os: serial ports, 4 x USB 3.2 Gen1 Type-A, 2 x Gigabit LAN
  • 12 V DC lockable Din4 power input; DisplayPort and optional HDMI external display support

Certifications
  • CE
  • FCC

Product highlights / features (visual & mechanical)
  • Projected capacitive multi-touch for precise onscreen operation
  • Flat bezel and open-frame housing for embedded and kiosk mounting
  • Metal enclosure with fan cooling, multiple mounting options (open frame default, panel or VESA optional)

Technical specifications
  • Display: 15.0 inches, Resolution 1024 x 768, Brightness 300 nits, Contrast 2000:1, Active area 304.1 x 228.1 mm
  • Processor: Intel® Core™ i7-9700TE (default) / i5-9500TE / i3-9100TE (options)
  • Chipset: Intel® Q370; Memory: 2 x non-ECC SO-DIMM up to 64 GB
  • Storage: 128 GB SSD default; optional 256/512 GB/1 TB/2 TB; 2 x SATA III for 2.5" drives; M.2 2280 M-Key (NVMe/SATA), M.2 2242 B-Key
  • Ethernet: 2 x Intel® Gigabit LAN; Security: TPM 2.0
  • IO: 4 x USB 3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 + 1 x RS232; Video: 1 x DP1.2 (default), 1 x HDMI 1.4 (optional); Audio: Mic in, Line out, 2 x speakers
  • Mechanical: 360 x 293 x 63 mm; Weight ≈ 4.1 kg; Enclosure: Metal; Cooling: Fan design
  • Environment: Operating 0°C to 50°C; Humidity 10%–90% RH non-condensing
  • Power: 1 x 12 V DC Din4 lockable connector; Adapter example 12 V 120 W; Accessories: AC/DC adapter, power cord, VESA screws, drivers/manual
  • Expansion: M.2 slots (2280/2230), optional PCIe 3.0 x16 slot; OS options: Windows 10 IoT Enterprise 64-bit, Linux (Ubuntu)
